| Manufacturer | |
|---|---|
| Angle | Straight |
| Colour | Black |
| Connector Style | Wall Mount Receptacle |
| Contact Gender | Pin – Male |
| Contact Plating | Silver (Standard) |
| Contact Size | 4#0 |
| Contacts Supplied | Yes |
| Coupling Style | Threaded |
| Insert Keyway | X |
| Insert Arrangement | 36-5 |
| No of Contacts | 4 |
| Insulation Resistance | 5000M? min. at 500V DC |
| Qualified | MIL-DTL-5015 |
| RoHS Compliant | Yes |
| Series | D/MS A/B |
| Shell Material | |
| Shell Plating | Trivalent Chromium Treatment (Black) |
| Shell Size | |
| Specification | MIL-DTL-5015 |
| Termination Method | Solder |
| Operating Temperature | – 55?C – + 125?C – -67?F – +257?F |
D/MS3101A36-5PY

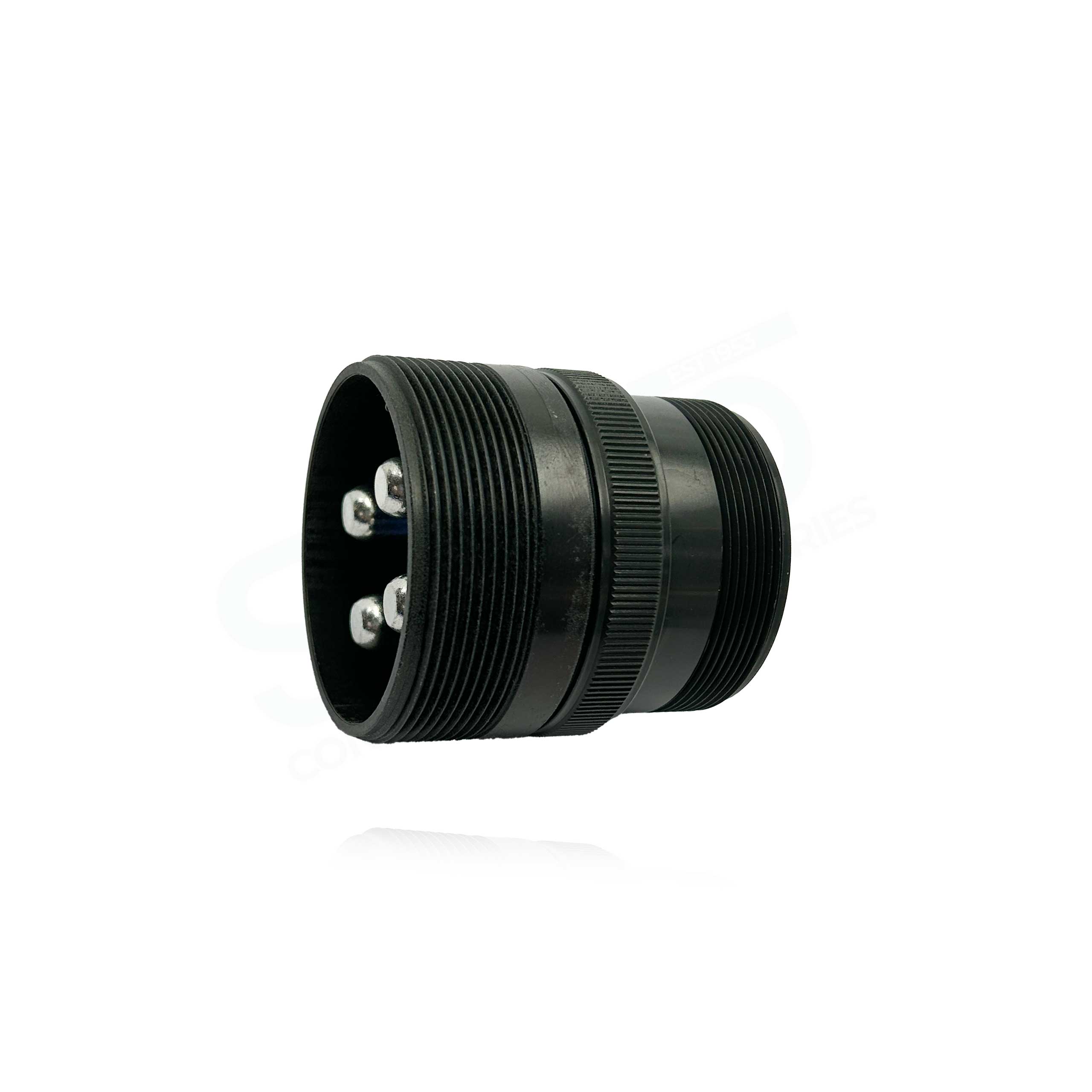

D/MS3101A36-5PY Cable Connecting Receptacle, Black Trivalent Chromate, Shell Size 36 with 4#0 Pin Contacts, Y Orientation.
10% Promo Pricing Until 10th October
| Manufacturer: | Fujikura |
|---|---|
| RoHS: |  |
| Datasheet: | D/MS3101A36-5PY Datasheet |
| Additional: |  |
Datasheet
Insert Arrangement
Mating Products
 |
D/MS3106A36-5SY
Straight Plug 36 SOCKET |
 |
D/MS3106B36-5SY
Straight Plug, Split Backshell 36 SOCKET |
 |
D/MS3108B36-5SY
Right Angle Plug, Split Backshell 36 SOCKET |
Accessories
 |
Dust Cap |
