Full Description

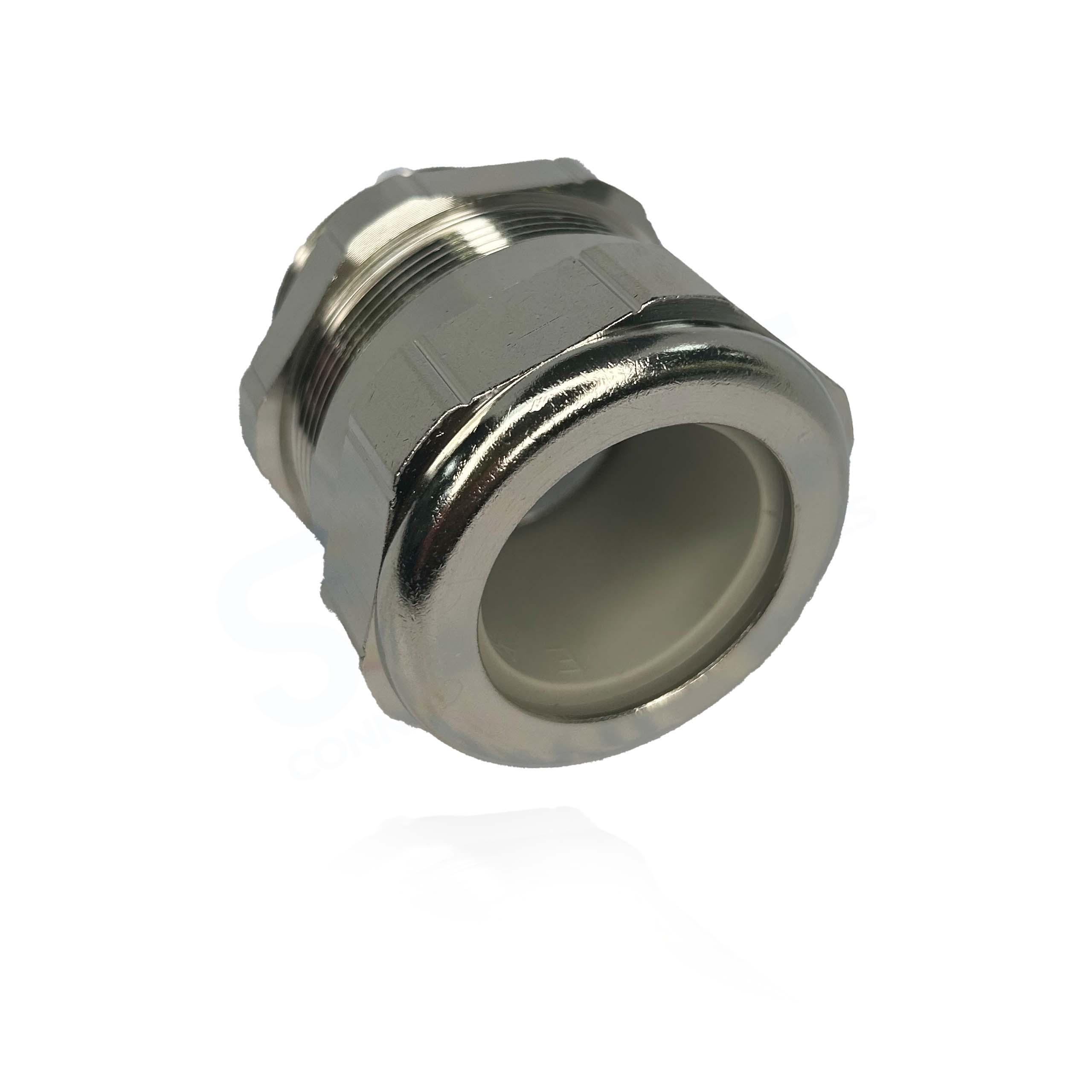

240483014, EMC cable gland for screened lines and cables, made with high-quality brass and nickel-plated for ultimate durability, this cable gland features a metric connection thread EN 60423 and an o-ring made with HNBR material for optimal sealing and protection. With an IP 68 type of protection up to 10 bar and a strain relief up to class A, EN 62444, this cable gland is designed to withstand even the most demanding applications. The contact element between the shield and the cable gland body is crucial for ensuring a low-impedance connection, and with PFLITSCH’s EMC cable gland, you can trust that the shield is properly secured. PFLITSCH offers bonding the shield using innovative springs, ensuring highly reliable and easy assembly. This cable gland also features a unique advantage with cones that provide extremely rigid compression of the shield. Thanks to its large contact surfaces between the cable screen and the contact element, the contact element and the cable gland body, and the cable gland body and the enclosure, this cable gland offers excellent screening attenuation. Screening attenuation is a measure of shield quality in terms of electromagnetic compatibility, and the PFLITSCH cable gland stands out with high attenuation values. The use of materials with high electrical conductivity further amplifies its shielding capabilities.
