3RBS6A14S-6PACT53

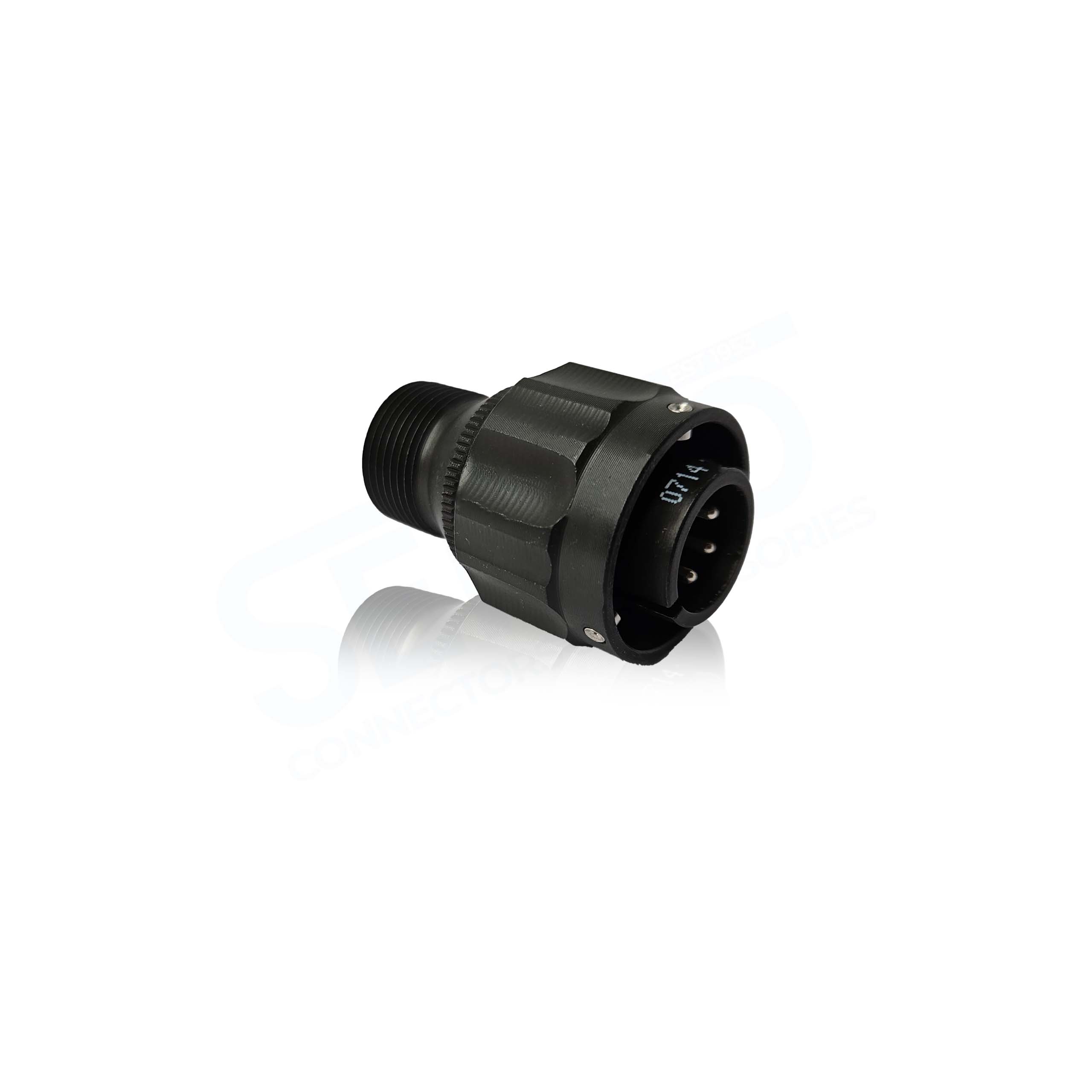

3RBS6A14S-6PACT53 Straight plug with “artic” type coupling nut

GENERAL FEATURES
-straight plug with backshell with accessory thread
-reverse bayonet coupling system
-coupling nut with “artic” shape for better grip
-compliant with MIL-5015 norm where applicable

TECHNICAL DATA
-arrangement and tot. cont. n°: 14S-6 (6 contacts)
-contacts type: pin solder contacts, 6 size 16 contact
-rated voltage: 200/250 Vac RMS/Vdc
-test voltage: 1’000 Vac RMS
-rated current: Size 16 = 22 A at 20°C (68°F)
-working temperature: (-55÷125)°C (-67÷257)°F
-environmental class (coupled): IP 67

MATERIAL AND FINISH
Contacts:
-copper alloy with silver plating (T01)
Inserts and grommet:
-black polychloroprene elastomer

Gaskets:
-nitrile butadiene elastomer (NBR)

Metallic parts:
-aluminum alloy with ZnCo + Olive drab (T53) plating
