MS3474W16-26P

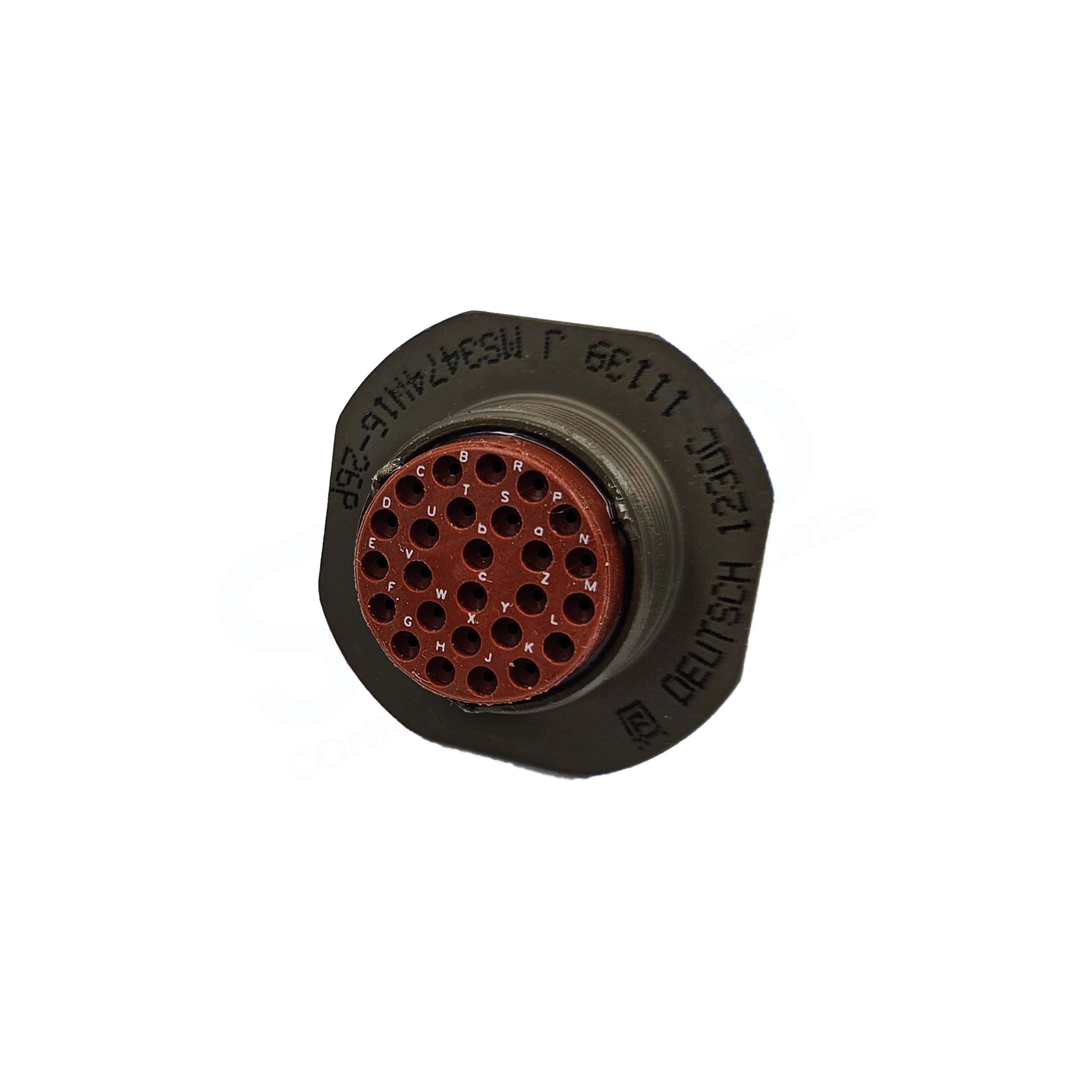

MS3474W16-26P, Jam Nut Receptacle, Olive Drab Cadmium over Electroless Nickel, Aluminium Alloy, Shell size 16 with 26#20 Pin Contacts.
| Manufacturer: | TBA |
|---|---|
| RoHS: |  |
| Datasheet: | MS3474W16-26P Datasheet |
| Additional: |  |
RoHS Compliant: No
Technical Specifications
| Manufacturer | TBA |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 26#20 |
| Contacts Supplied | Yes |
| Insert Arrangement | 16 – 26 |
| No of Contacts | 26 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab |
| Shell Size | 16 |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -55°C to +200°C – -65°F to +392°F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Military Spec QPL |
|---|---|
| Specification | MIL-DTL-26482 |
| Series | MIL-DTL-26482 |
