85330AS0801P8
85330AS0801P8, Square Flange Receptacle, with 200? Aluminium Black Anodised Non Conductive Plating, with 360? teeth, Shell Size 08 with 1#8 Pin Contact, 8 Orientation.
[table “” not found /]
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Black Anodised Non Conductive |
| Coupling Method: | Screw Coupling |
| Shell Size: | 08 |
| Contact Gender: | Pin |
| Contact Size: | 1#8 |
| Contact Gender: | Male |
| Mating Cycles: | 500 |
| Operating Temperature: | -65? to +200?C (-149? to +392?F) |
| Salt Spray: | 500 hrs |
| Insert Arrangement: | 08-01 |
| RoHS Compliant: | Yes |
| Series: | 853 Series |
| Specification: | 8533 |
| Qualified Status: | Commercial |
| Comments: | 08-01 Layout only available in Eaton Souriau 853. Quadrax layout only, #8 Quadrax contact compatible with #6 cavity. |

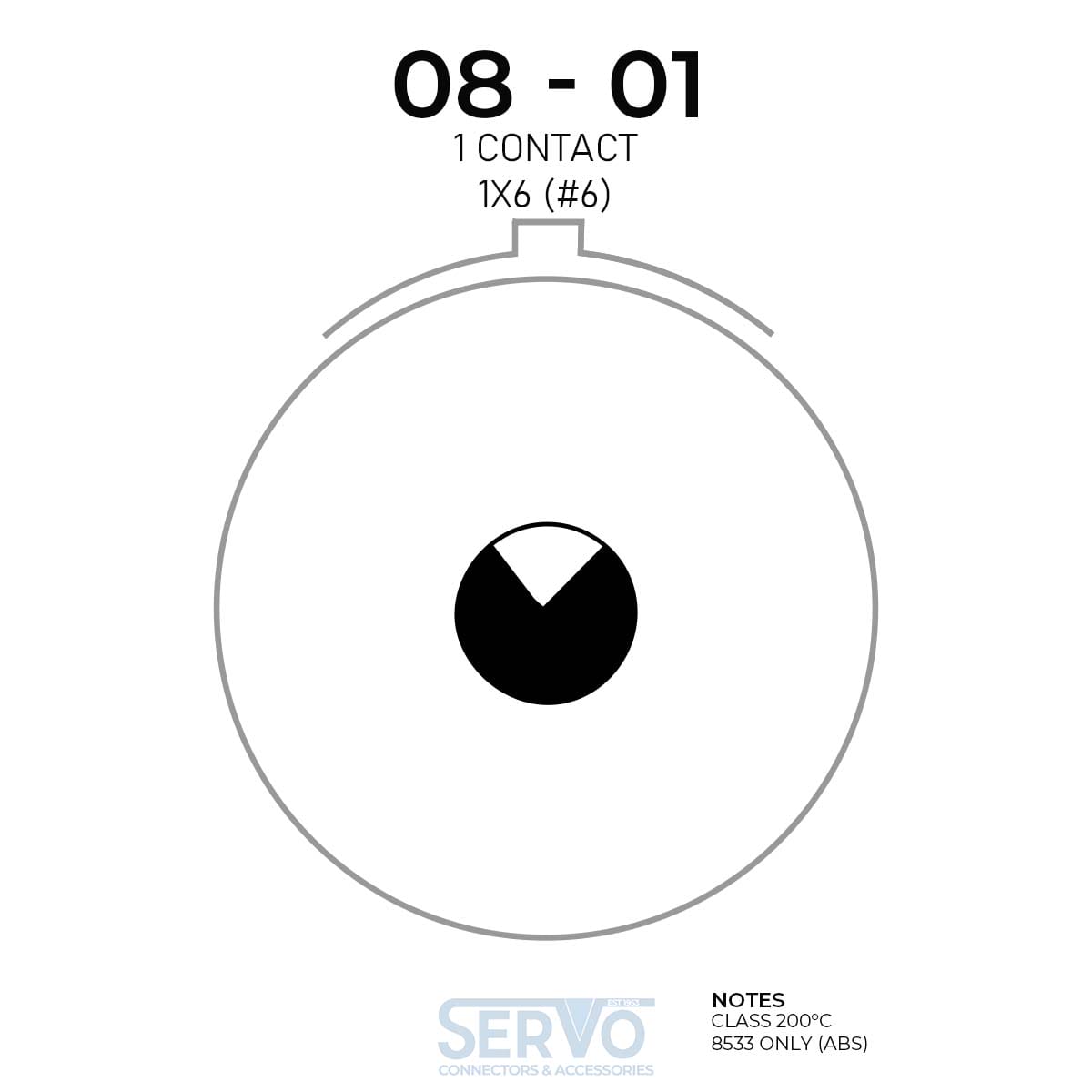

ESC10 Datasheet | Contact Layout
|
