85330AS0898PN
85330AS0898PN, Square Flange Receptacle, with 200? Aluminium Black Anodised Non Conductive Plating, with 360? teeth, Shell Size 08 with 3#20 Pin Contact, N Orientation.
[table “” not found /]
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Black Anodised Non Conductive |
| Coupling Method: | Screw Coupling |
| Shell Size: | 08 |
| Contact Gender: | Pin |
| Contact Size: | 3#20 |
| Contact Gender: | Male |
| Mating Cycles: | 500 |
| Orientation: | N |
| Operating Temperature: | -65? to +200?C (-149? to +392?F) |
| Salt Spray: | 500 hrs |
| Insert Arrangement: | 08-98 |
| RoHS Compliant: | Yes |
| Series: | 853 Series |
| Specification: | QPL |
| Qualified Status: | Commercial |
| Comments: | Plating only available as Eaton Souriau 8533 |

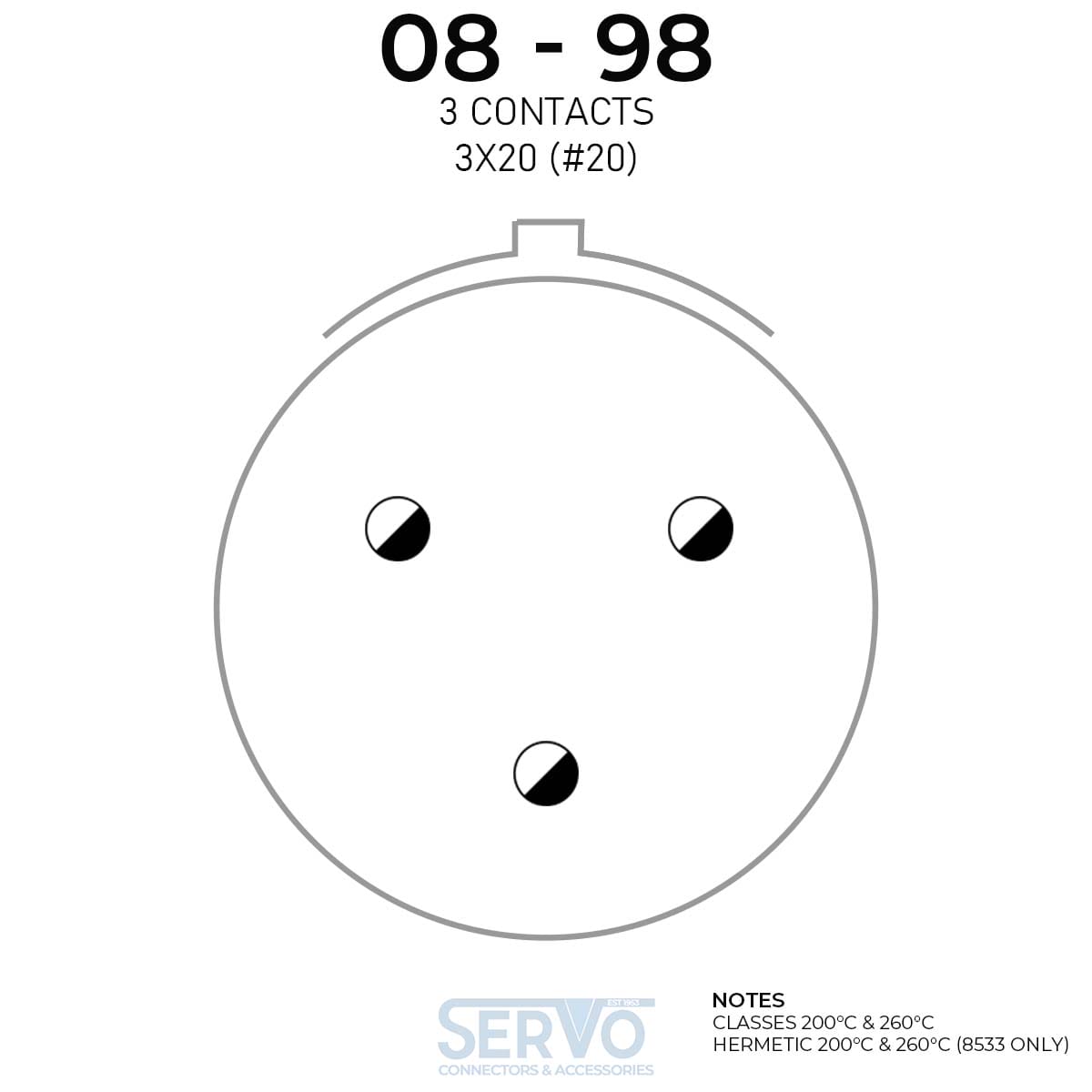

ESC10 Datasheet | Contact Layout
|
