85330AS1404P7, Square Flange Receptacle, with 200° Aluminium Black Anodised Non Conductive Plating, with 360° teeth, Shell Size 14 with 4#12 Pin Contact, 7 Orientation.
Technical Information
| Manufacturer: |
Eaton Souriau |
| Shell Style: |
Square Flange Receptacle |
| Shell Material: |
Aluminium Alloy |
| Shell Plating: |
Black Anodised Non Conductive |
| Coupling Method: |
Screw Coupling |
| Shell Size: |
14 |
| Contact Gender: |
Pin |
| Contact Size: |
4#12 |
| Contact Gender: |
Male |
Mating Cycles:
|
500 |
| Orientation: |
N |
Operating Temperature:
|
-65° to +200°C (-149° to +392°F) |
Salt Spray:
|
500 hrs |

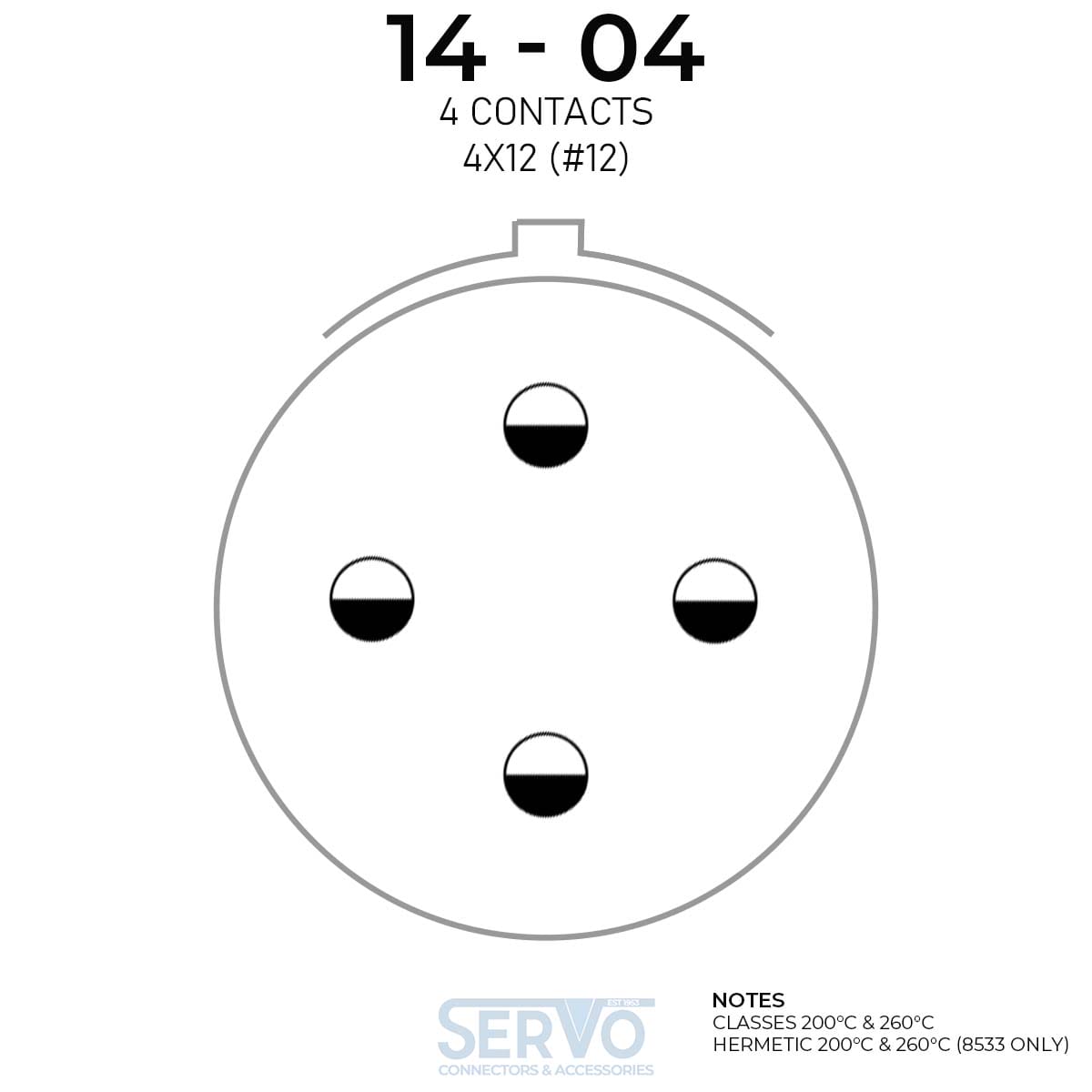

| Insert Arrangement: |
14-04 |
| RoHS Compliant: |
Yes |
| Series: |
853 Series |
| Specification: |
QPL |
| Qualified Status: |
Commercial |
| Comments: |
Plating only available as Eaton Souriau 8533 |
|
|
|
|
|
