85333KS2404P7
85333KS2404P7, Plug with RFI Shielding Ring, with 200? Stainless Steel Plating, with 360? teeth, Shell Size 24 with 4#4 Pin Contact, 7 Orientation.
[table “” not found /]
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Plug with RFI Shielding Ring |
| Shell Material: | Stainless Steel |
| Shell Plating: | Passivated |
| Coupling Method: | Screw Coupling |
| Shell Size: | 24 |
| Contact Gender: | Pin |
| Contact Size: | 4#4 |
| Contact Gender: | Male |
| Mating Cycles: | 500 |
| Orientation: | N |
| Operating Temperature: | -65? to +200?C (-149? to +392?F) |
| Salt Spray: | 500 hrs |

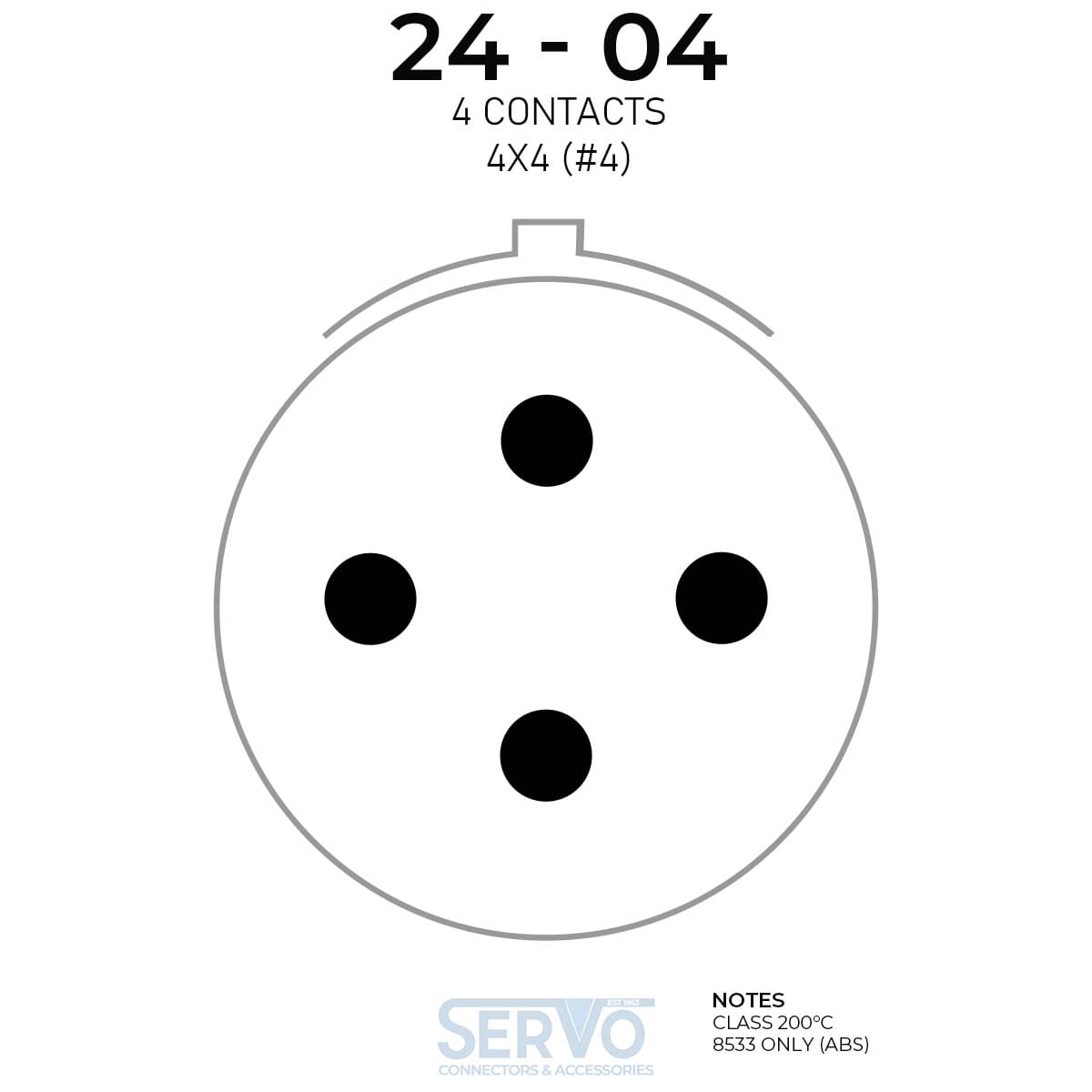

| Insert Arrangement: | 24-04 |
| RoHS Compliant: | Yes |
| Series: | 853 Series |
| Specification: | QPL |
| Qualified Status: | Commercial |
| Comments: | 24-04 Layout only available in Eaton Souriau 853. |
ESC10 Datasheet | Contact Layout
|
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|
