8D009F35PE

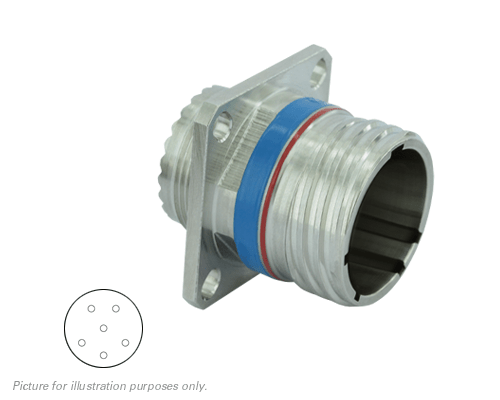

8D009F35PE, Square Flange Receptacle, Shell Size 09 with Aluminium Alloy Nickel (F) Plating, 6#22D Pin Contacts, E Orientation.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 6#22D |
| Contacts Supplied | Yes |
| Insert Keyway | E |
| Insert Arrangement | 09-35 |
| No of Contacts | 6 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 09 (A) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
