8D009F35PN
8D009F35PN is part of the MIL-DTL-38999 Series III connector family. With shell size 09 (A) and 6 contacts. The Aluminium Alloy shell with Nickel (F) provides durability and corrosion resistance. Crimp termination ensures fast, reliable assembly with high vibration resistance.

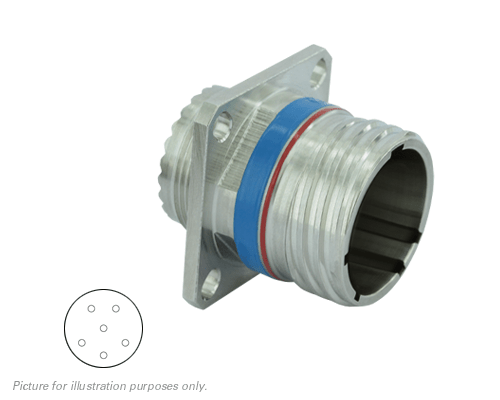

8D009F35PN, Square Flange Receptacle, Shell Size 09 with Aluminium Alloy Nickel (F) Plating, 6#22D Pin Contacts, N Orientation.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 6#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 09-35 |
| No of Contacts | 6 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 09 (A) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 48 Hours |
