8D009F98PB

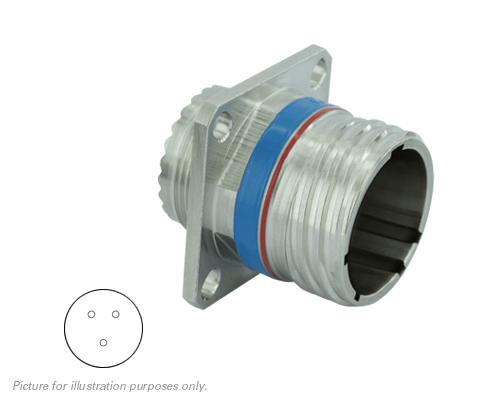

Eaton Souriau 8D009F98PB 8D Series III Square Flange Receptacle, Shell Size 09 with Aluminium Alloy Nickel Plating, 3#20 Male Pins Contacts, B Orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military, Naval, Railway.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 09-98 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel, Nickel (F) |
| Shell Size | 09, 09 (A) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
