8D009J98BC

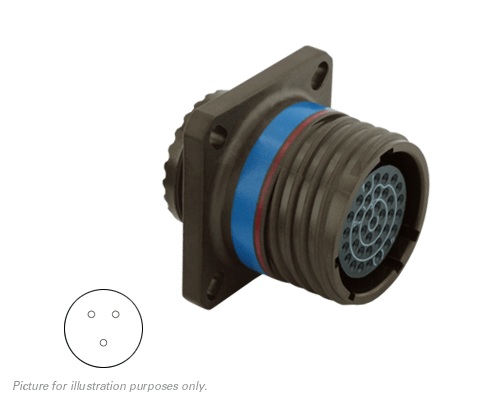

8D009J98BC, Square Flange Receptacle, Shell Size 09 with Composite, Cadmium Olive Drab (J) Plating, 3#20 Less Socket Contacts, C Orientation.

RoHS Compliant:
Datasheet: 8D Series Datasheet
Additional:
Eaton Souriau
Manufacturer

Series

MIL-DTL-38999 Series III

Specification

MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC

Shell Material

Shell Plating

Cadmium Olive Drab (J)

Shell Size

No of Contacts

3

Contact Size

3#20

Contact Gender

Socket – Female

Contacts Supplied

No

Termination Method

Crimp

Sealing

IP67

Operating Temperature

-65°C +175°C – -85°F +347°F

Insert Keyway

C

RoHS Compliant

Yes

Salt Spray

2000 Hours

Shell Continuity

3 mΩ

Shielding

65 db at 10 GHz

Mating Cycles

500

Qualified

Yes – Commercial Version

Insert Arrangement

09 – 98

Connector Style

Square Flange Receptacle

Ordering Information

Available on back-order

Require more? Enquire Here

Resources

Datasheet

8D Series PDF Cover

Insert Arrangement

09 98 Contact Layout

Mates With

8D509J98PC
8D509J98AN

Comparable Products
