8D009K98PN

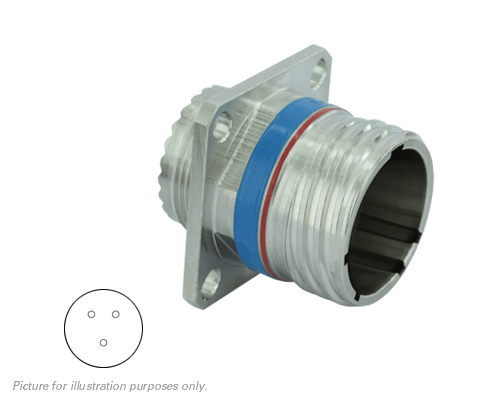

8D009K98PN, Square Flange Receptacle, Shell Size 09 with Passivated Stainless Steel (K) Plating, 3#20 Pin Contacts, N Orientation.
RoHS Compliant: Yes
VAD: 72 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 09-98 |
| No of Contacts | 3 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 09 (A) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
