8D009ZC98PN

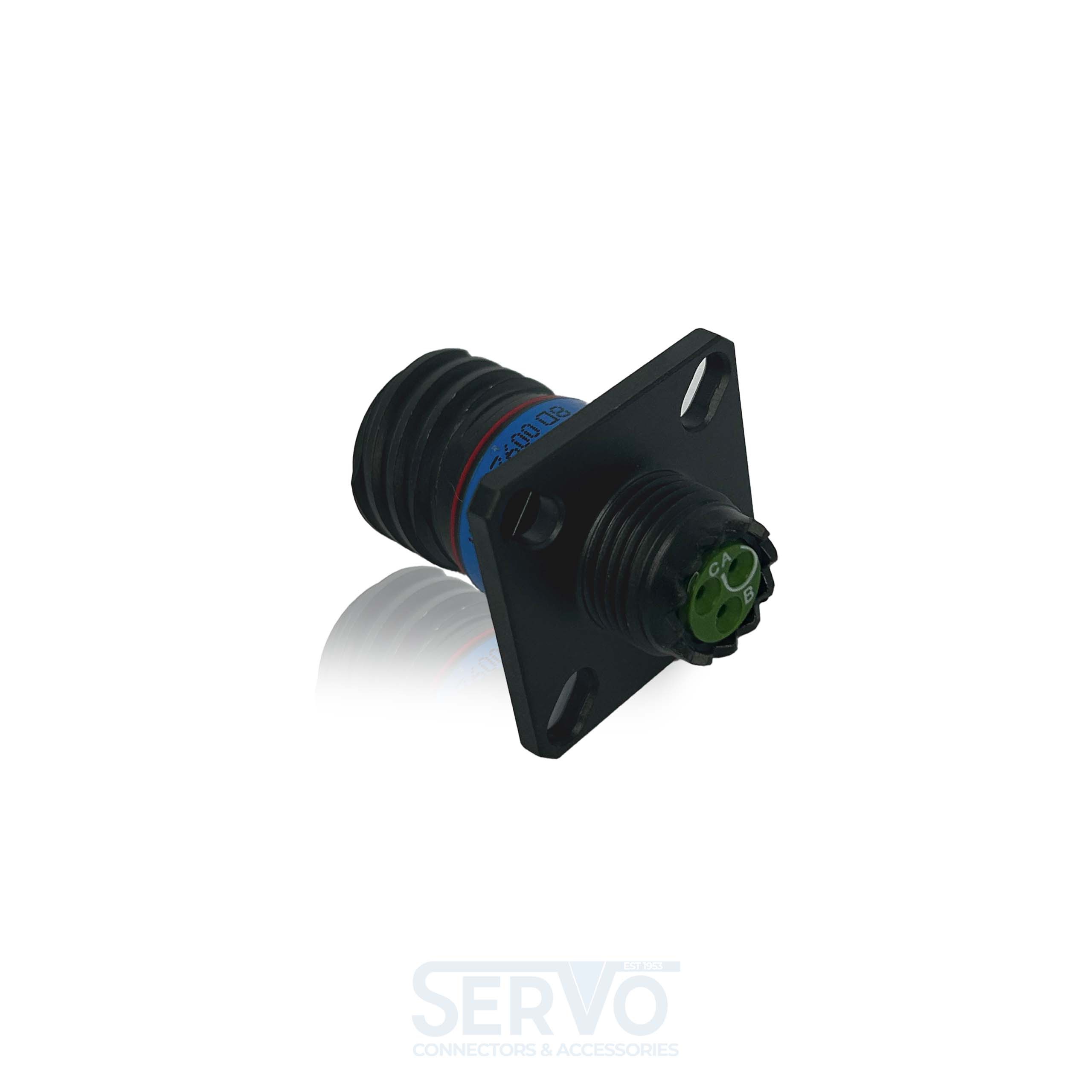

8D009ZC98PN, Square Flange Receptacle, Shell Size 09 with Green Zinc Cobalt (ZC) Plating, 3 #20 Pin Contacts.
Please note that that the ZC Green Zinc Cobalt plating was discontinued by Eaton Souriau in March 2024, once this stock has been exhausted we will not be able to supply any more.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 09 – 98 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 9 (A) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | No – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | MIL-DTL-38999 Series III |
