8D011W02AN

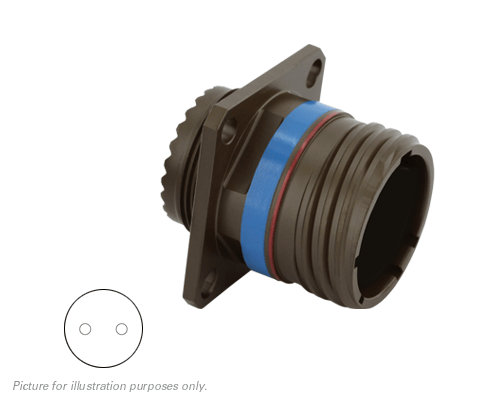

8D011W02AN, Square Flange Receptacle, Shell Size 11 with Cadmium Olive Drab (W) Plating, Less 2#16 Pin Contacts.
RoHS Compliant: No
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#16 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 11-02 |
| No of Contacts | 2 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Olive Drab Cadmium (W) |
| Shell Size | 11 (B) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
