8D013K04BN

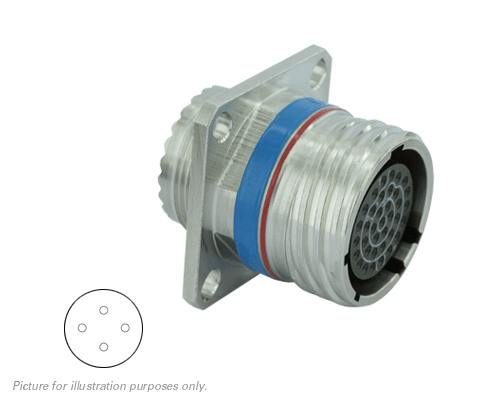

Eaton Souriau 8D013K04BN 8D Series III Square Flange Receptacle, Shell Size 13 with Stainless Steel Passivated Plating, 4#16 Less Sockets Contacts, N Orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military, Naval, Railway.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Less Socket Contacts |
| Contact Size | 4#16 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 13-04 |
| No of Contacts | 4 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 13, 13 (C) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
