8D015M05SN

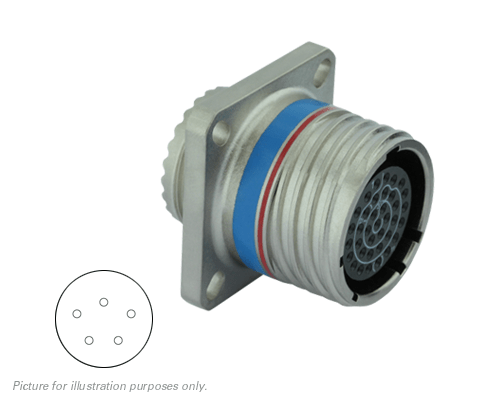

Eaton Souriau 8D015M05SN 8D Series III Square Flange Receptacle, Shell Size 15 with Composite Electroless Nickel Plating, 5#16 Female Sockets Contacts, N Orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military, Naval, Railway.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 5#16 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 15-05 |
| No of Contacts | 5 |
| Shell Material | Composite |
| Shell Plating | Electroless Nickel (F), Nickel (M) |
| Shell Size | 15, 15 (D) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 3 mΩ |
| Shielding | 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F, -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 2000 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
