8D015ZC19BN

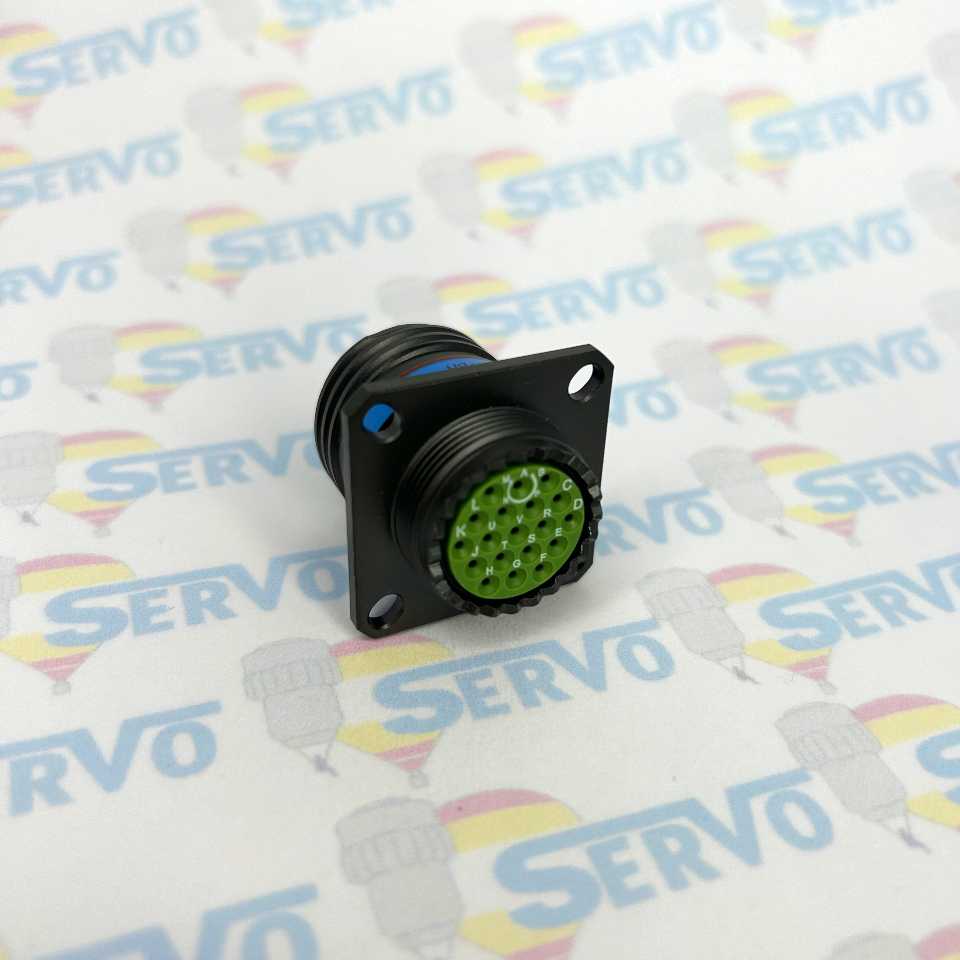

8D015ZC19BN, Square Flange Receptacle, Shell Size 15 with Green Zinc Colbat Plating, 19#20 Less Socket Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 19#20 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 15-19 |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 15 (D) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
| VAD | 48 Hours |
