8D017M06PNA44

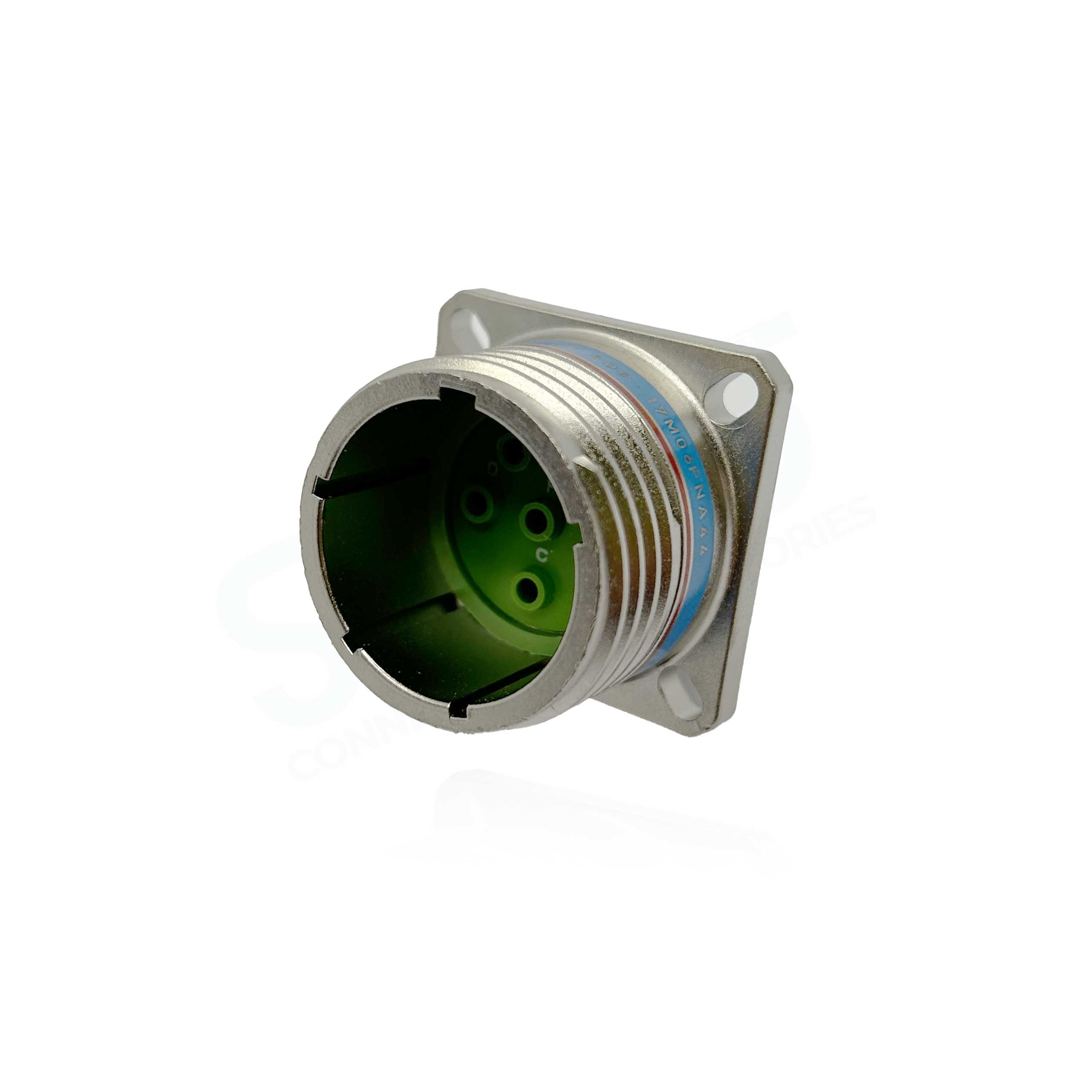

8D017M06PNA44, Square Flange Receptacle, Shell Size 17 with Nickel Plating, 6#12 Pin Contacts.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 6#12 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 17-06 |
| Shell Material | Composite |
| Shell Plating | Nickel (M) |
| Shell Size | 17 (E) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
