8D017Z02SN

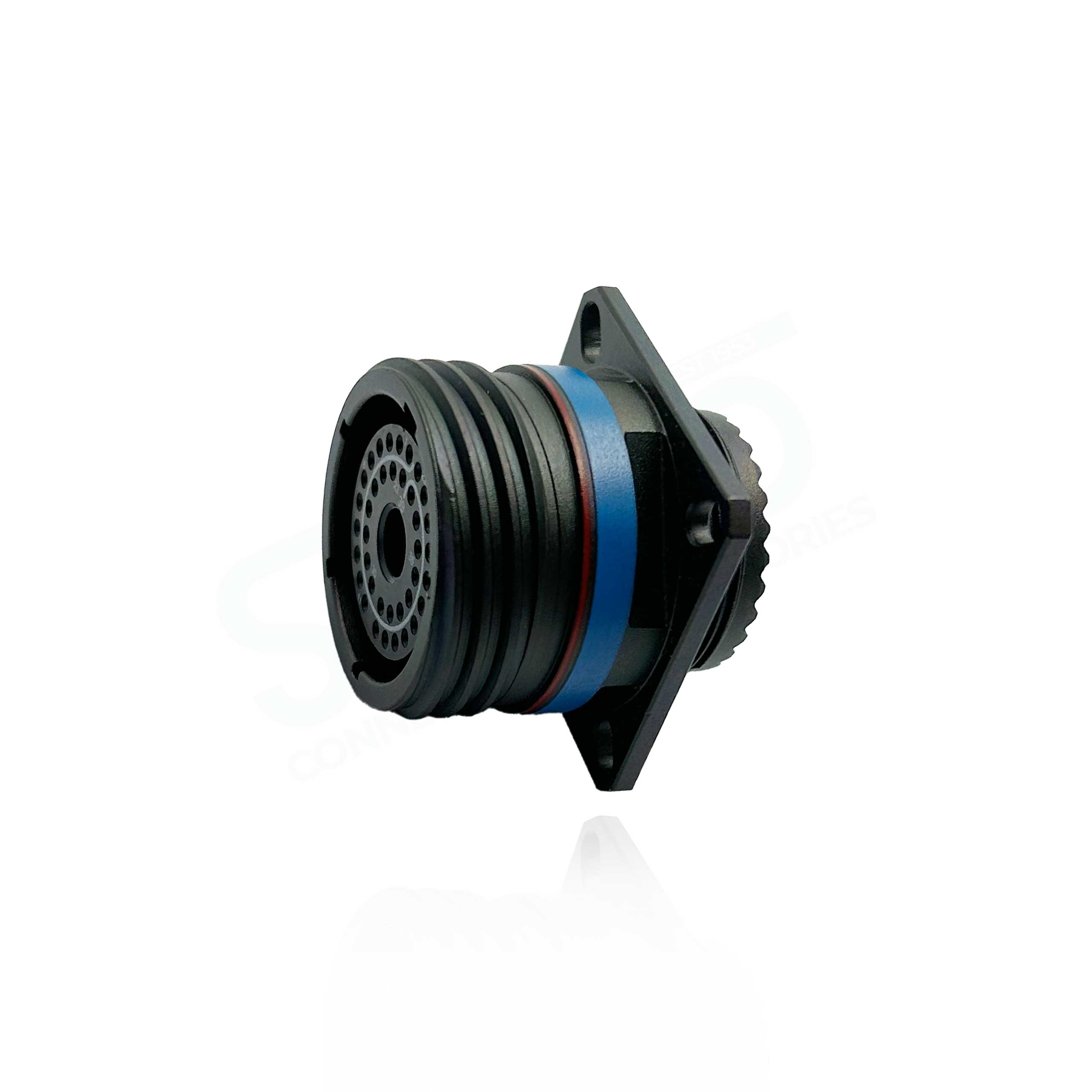

8D017Z02SN, Square Flange Receptacle, Shell Size 19 with Black Zinc Nickel (Z) Plating, 38#22D, 1#8 Triax Socket Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 1#8, 38#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 17-02 |
| No of Contacts | 39 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 17 (E) |
| Termination Method | Crimp, Triax |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
