8D019K32SA

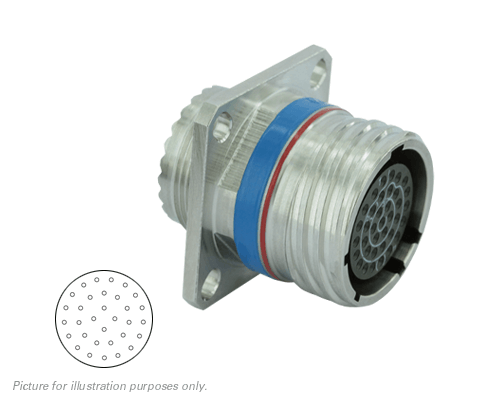

8D019K32SA, Square Flange Receptacle, Shell Size 19 with Passivated Stainless Steel (K) Plating, 32#20 Socket Contacts, A Orientation.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 32#20 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 19-32 |
| No of Contacts | 32 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 19 (F) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
