Eaton Souriau

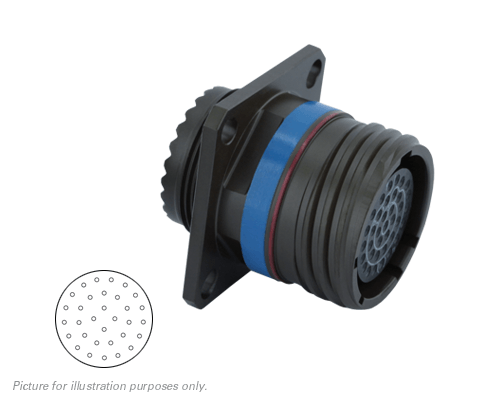

Eaton Souriau, D38999/20ZF32BA, Square Flange Receptacle, Shell Size 19 with Black Zinc Nickel Plating, 32#20 Less Socket Contacts, A Orientation.

8D019Z32BN

8D019Z32BN, Square Flange Receptacle, Shell Size 19 with Black Zinc Nickel (Z) Plating, 32#20 Less Socket Contacts.

RoHS Compliant: Yes

Ordering Information

106 in stock (can be backordered)

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleSquare Flange Receptacle
Contact GenderSocket – Female
Contact Size32#20
Contacts SuppliedNo
Insert KeywayN
Insert Arrangement19-32
No of Contacts32
Shell MaterialAluminium Alloy
Shell PlatingBlack Zinc Nickel (Z)
Shell Size19 (F)
Termination MethodCrimp
Mating Cycles500
Shell Continuity2.5 mΩ
Shielding85 db at 1 GHz

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
SealingIP67

Quality & Compliance

QualifiedYes – Commercial Version
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
