8D021W75PB251

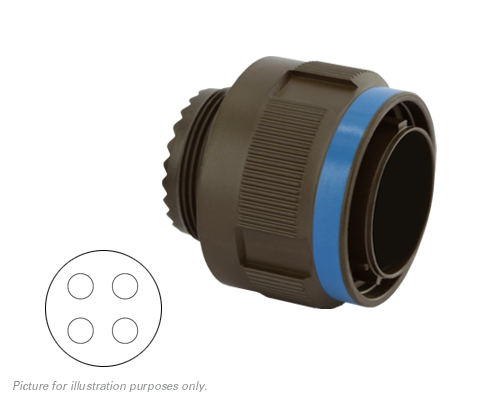

The Eaton Souriau 8D021W75PB251 is an 8D Series III commercial circular connector. featuring a Size 21 Aluminium Alloy shell with Olive Drab Cadmium plating, and 4#8 POWER Male Pins in B orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military and Naval applications. This connector is engineered for robust performance in industrial and commercial systems.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 4#8 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 21-75 |
| No of Contacts | 4 |
| Shell Material | Aluminium Alloy, Aluminium with Olive Drab Cadmium Plating |
| Shell Plating | Olive Drab Cadmium |
| Shell Size | 21 |
| Termination Method | Crimp, Power |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
