8D023J21BC

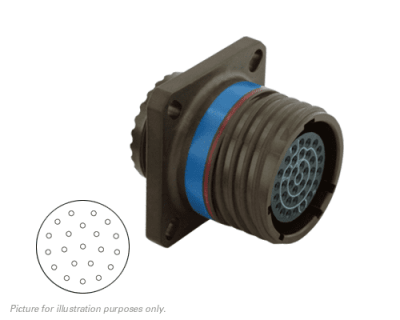

8D023J21BC, Square Flange Receptacle, Shell Size 23 with Cadmium Olive Drab (J) Plating, 21#16 Less Socket Contacts, C Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 21#16 |
| Contacts Supplied | No |
| Insert Keyway | C |
| Insert Arrangement | 23-21 |
| No of Contacts | 21 |
| Shell Material | Composite |
| Shell Plating | Cadmium Olive Drab (J) |
| Shell Size | 23 (H) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 3 mΩ |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
