8D023ZC54PN

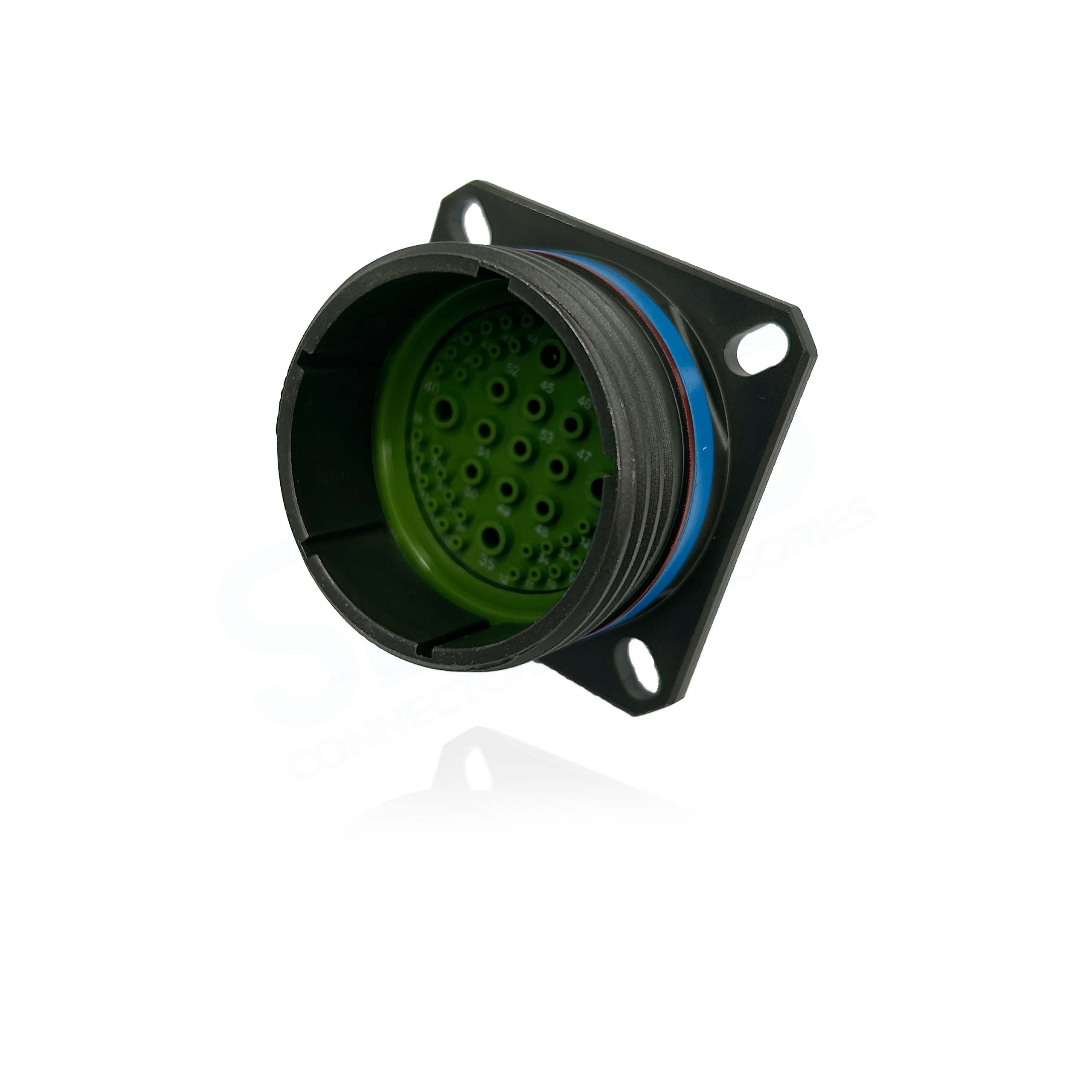

8D023ZC54PN, Square Flange Receptacle, Shell Size 23 with Green Zinc Cobalt Plating, 4#12, 9#16, 40#22D Pin Contacts.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 4#12, 40#22D, 9#16 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 23-54 |
| No of Contacts | 53 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 23 (H) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
