8D025K41BN

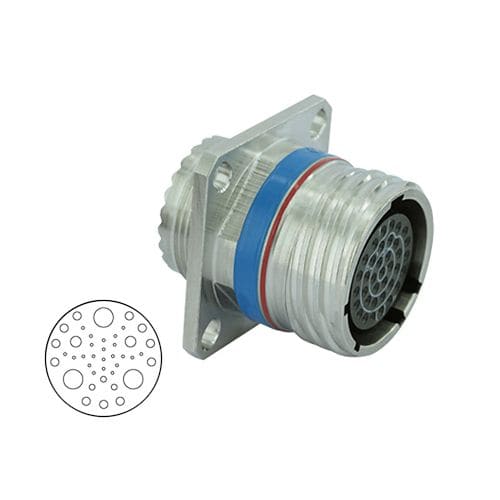

8D025K41BN, Square Flange Receptacle, Shell Size 25 with Passivated Stainless Steel (K) Plating, 22#22D, 3#20, 11#16, 2#12, 3#8 Triax Less Socket Contacts, N Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 11#16, 2#12, 22#22D, 3#20, 3#8 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 25-41 |
| No of Contacts | 41 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 25 (J) |
| Termination Method | Crimp, Triax |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
