8D025W41BN

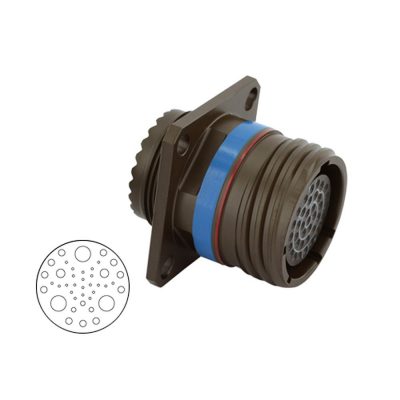

8D025W41BN, Square Flange Receptacle, Shell Size 25 with Cadmium Olive Drab (W) Plating, 22#22D, 3#20, 11#16, 2#12, 3#8 Triax Less Socket Contacts.
RoHS Compliant: No
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 11#16, 2#12, 22#22D, 3#20, 3#8 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 25-41 |
| No of Contacts | 41 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Olive Drab Cadmium (W) |
| Shell Size | 25 (J) |
| Termination Method | Crimp, Triax |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
