Eaton Souriau

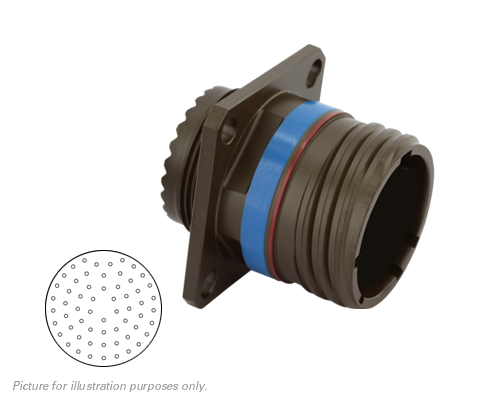

Eaton Souriau, D38999/20WJ61AA, Square Flange Receptacle, Shell Size 25 with Aluminium Olive Drab Cadmium Plating, 61 Size 20 Less Pin Contacts, A Orientation.

8D025W61PA

8D025W61PA, Square Flange Receptacle, Shell Size 25 with Cadmium Olive Drab (W) Plating, 61#20 Pin Contacts, A Orientation.

RoHS Compliant: No
VAD: 48 Hours
Download Datasheet

Ordering Information

34 in stock (can be backordered)

Estimated Factory Lead Time: 13 Weeks

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleSquare Flange Receptacle
Contact GenderPin – Male
Contact Size61#20
Contacts SuppliedYes
Insert KeywayA
Insert Arrangement25-61
No of Contacts61
Shell MaterialAluminium Alloy
Shell PlatingOlive Drab Cadmium (W)
Shell Size25 (J)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +175°C – -85°F +347°F
RoHS CompliantNo

Quality & Compliance

QualifiedYes – Commercial Version
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
