8D025Z46PN

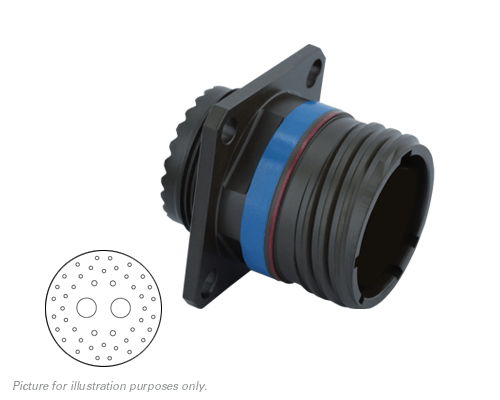

Eaton Souriau 8D025Z46PN 8D Series III Square Flange Receptacle, Shell Size 25 with Aluminium Alloy Black Zinc Nickel Plating, 40#20,4#16,2#8 COAX Male Pins Contacts, N Orientation. Ideal for Aerospace, Armoured Vehicles, Energy, Helicopter, Industrial, Maritime, Military, Naval, Railway.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#8 COAX, 4#16, 40#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 25-46 |
| No of Contacts | 46 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel, Black Zinc Nickel (Z) |
| Shell Size | 25, 25 (J) |
| Termination Method | Coax |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F, -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
