8D025Z46SA

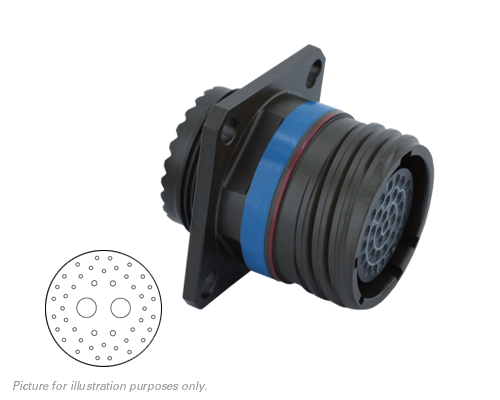

8D025Z46SA, Square Flange Receptacle, Shell Size 25 with Black Zinc Nickel (Z) Plating, 40#20, 4#16, 2#8 Coax Socket Contacts, A Orientation.
RoHS Compliant: Yes
VAD: 48 Hours
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 2#8, 4#16, 40#20 |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 25-46 |
| No of Contacts | 46 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 25 (J) |
| Termination Method | Coax, Crimp |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
