8D0E11Z02BN674

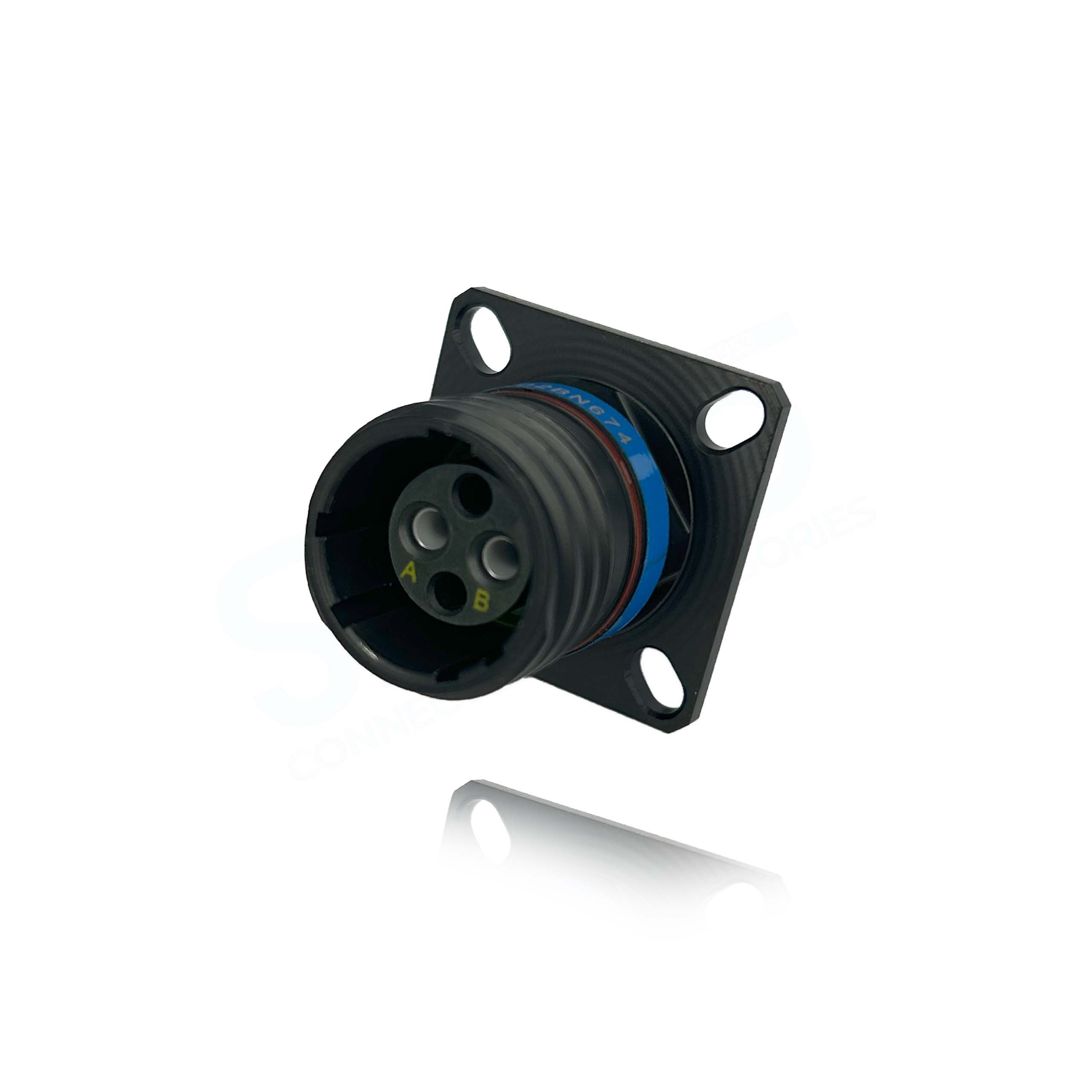

8D0E11Z02BN674, Square Flange Receptacle, Shell Size 11 with Olive Drab Cadmium Plating, 2 #16 Less Socket Contacts.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 2 |
| Insert Keyway | N |
| Insert Arrangement | 11-02 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 11 (B) |
| Termination Method | ELIO |
Environmental Specifications
| Operating Temperature | -65°C +125°C – -85°F +257°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
