8D0E19Z08AE

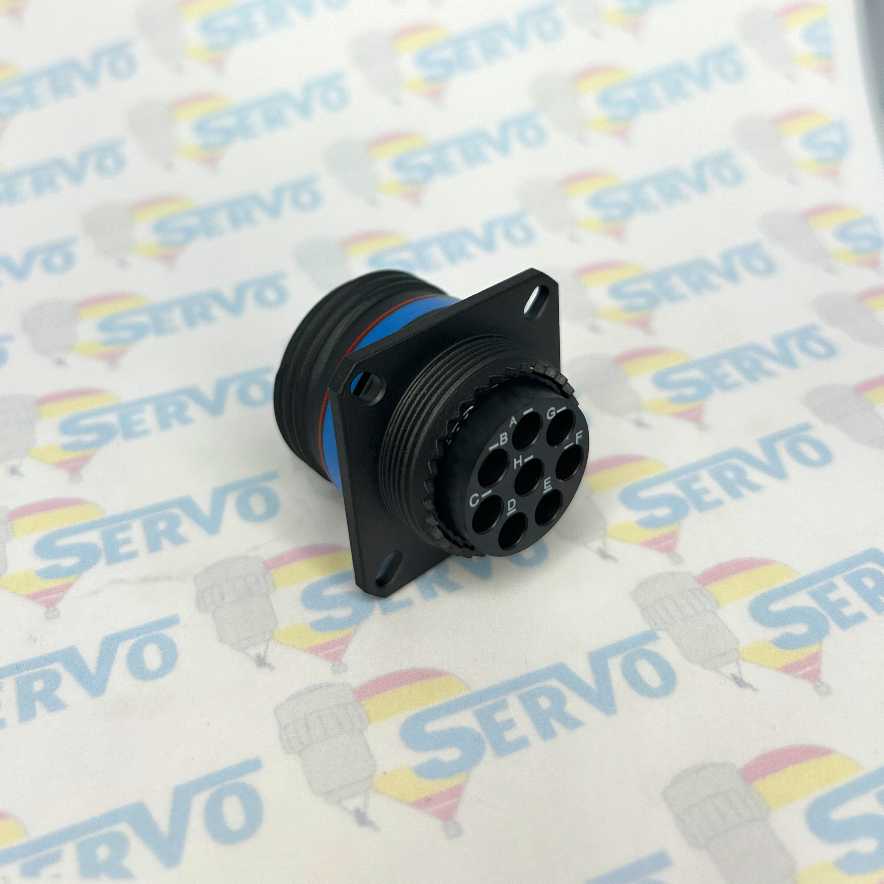

8D0E19Z08AE Square Flange Receptacle, Shell Size 19 with Black Zinc Nickel (Z) Plating, 8 Optical Less ELIO Pin Contacts, E Orientation.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 8 |
| Insert Keyway | E |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 19 (F) |
| Termination Method | ELIO |
Environmental Specifications
| Operating Temperature | -65°C +125°C – -85°F +257°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
