8D0L11F35PN

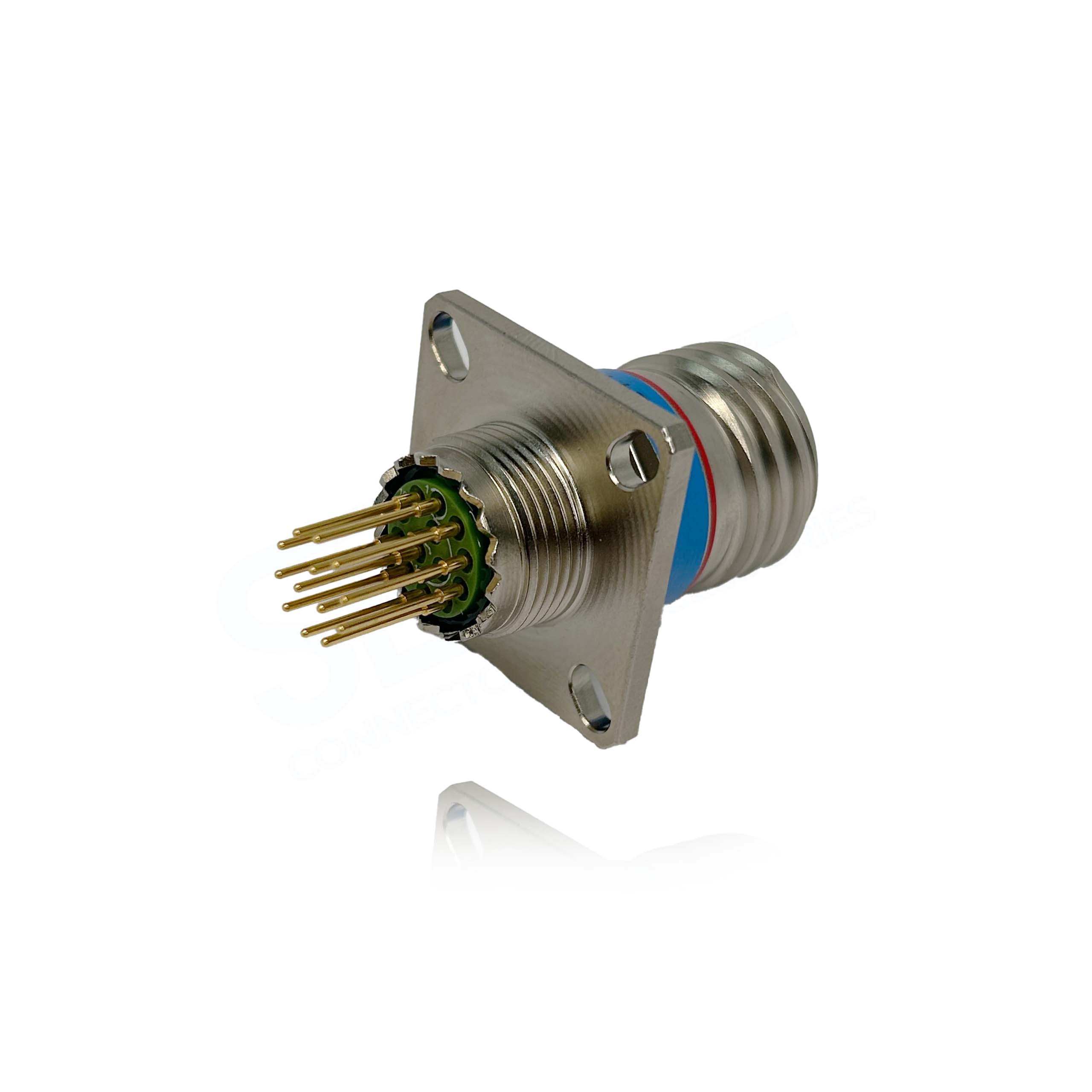

8D0L11F35PN Square Flange Receptacle, Shell Size 21 with Nickel Plating, 13#22D Long PCB Tail Pin Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 13#22D |
| Contacts Supplied | Yes |
| Insert Keyway | Normal |
| Insert Arrangement | 11-35 |
| No of Contacts | 13 |
| Shell Material | Aluminium with Nickel Plating |
| Shell Plating | Electroless Nickel (F) |
| Shell Size | 11 (B) |
| Termination Method | PCB |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
