8D0L19F35SN

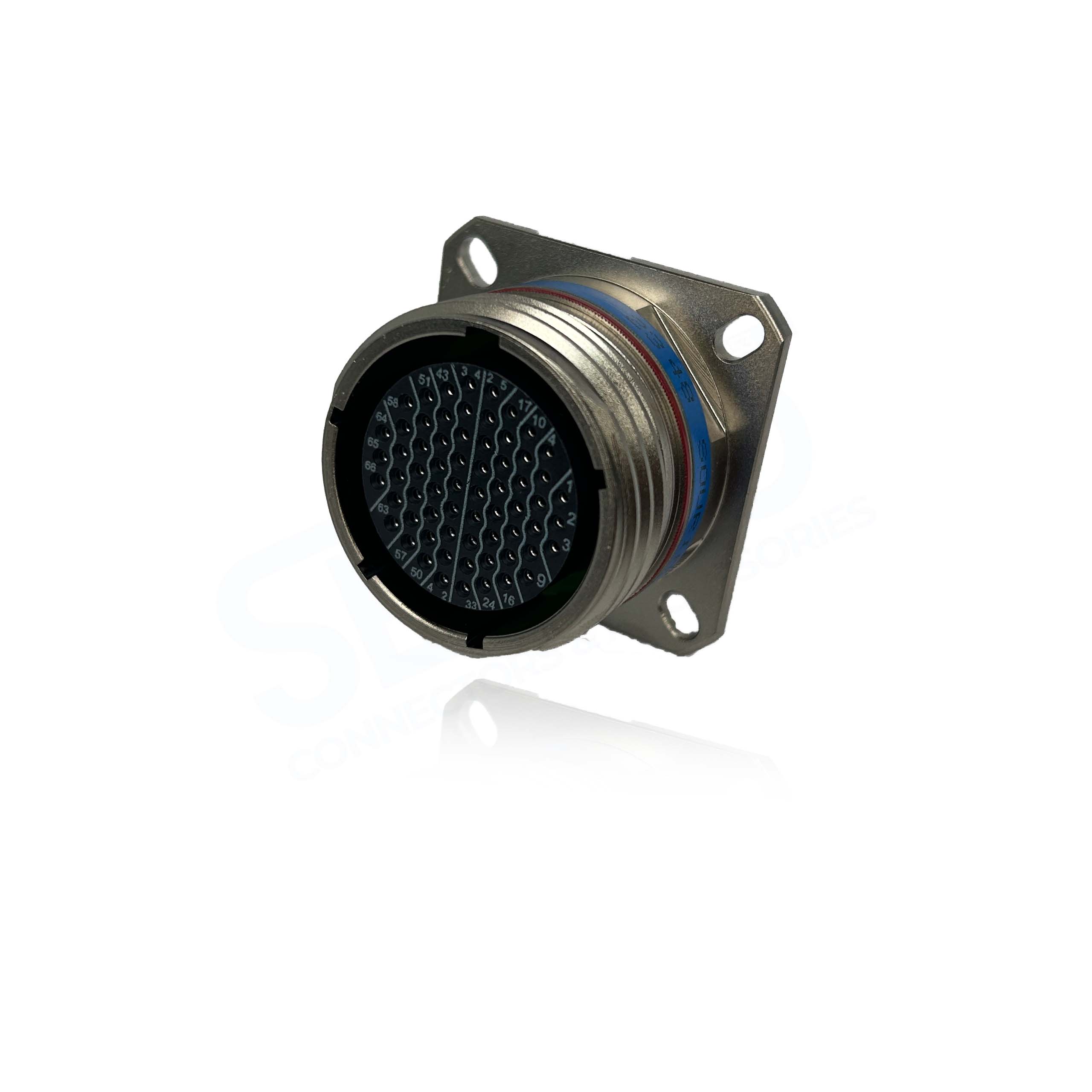

8D0L19F35SN Square Flange Receptacle, Shell Size 19 with Nickel Plating, 66#22D Long PCB Tail Socket Contacts.
Technical Information
| Manufacturer: | Eaton Souriau |
| Shell Style: | Square Flange Receptacle |
| Shell Material: | Aluminium Alloy |
| Shell Plating: | Nickel |
| Shell Size: | 19 (F) |
| Contact Size: | 66#22D |
| Contact Gender: | Socket |
| Contact Type: | PC Tail – PCB |
| Insert Arrangement: | 19 – 35 |
| Series: | MIL-DTL-38999 Series III |
| Specification: | Commercial |
| RoHS: | Yes |
| Salt Spray: | 500 |
| Mating Cycles: | 500 |
| Mates With: | 8D519F35PN |
8D519F35PN Datasheet
|
Contact Layout
|
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Insert Arrangement | – |
| Shell Material | Aluminium with Nickel Plating |
| Termination Method | PCB |
Environmental Specifications
| Sealing | IP67 |
|---|
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
