Eaton Souriau

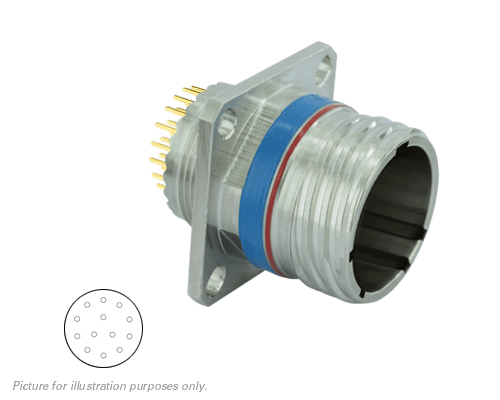

Eaton Souriau, 8D0S11K35PA Square Flange Receptacle, Shell Size 11 with Passivated Stainless Steel Plating, 13 #22D Specific PCB Pin Contacts, A Orientation.

8D0S11K35PN

8D0S11K35PN Square Flange Receptacle, Shell Size 11 with Passivated Stainless Steel Plating, 13 #22D Specific PCB Pin Contacts.

Download Datasheet

Ordering Information

Available to order

Estimated Factory Lead Time: 13 Weeks

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StyleSquare Flange Receptacle
Contact GenderPin – Male
Contact Size13#22D
Contacts SuppliedYes
Insert KeywayN
Insert Arrangement11-35
No of Contacts13
Shell MaterialAluminium Alloy
Shell PlatingPassivated (K)
Shell Size11 (B)
Termination MethodPCB
Mating Cycles500
Shell Continuity10 mΩ
Shielding45 db at 10 GHz

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes
Salt Spray500 Hours
SealingIP67

Quality & Compliance

QualifiedYes – Commercial Version
Specification8D Series
Series8D Series III
VAD72 Hours
