8D0S13M35SN

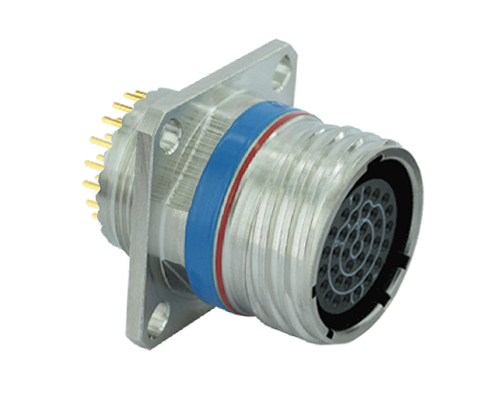

8D0S13M35SN Square Flange Receptacle, Shell Size 13 with Composite Nickel Plating, 22#22D Specific PCB Tail Socket Contacts.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Square Flange Receptacle |
| Contact Gender | Socket – Female |
| Contact Size | 22#22D |
| Contacts Supplied | Yes |
| Insert Keyway | Normal |
| Insert Arrangement | 13-35 |
| No of Contacts | 22 |
| Shell Material | Composite Nickel |
| Shell Plating | Nickel Composite |
| Shell Size | 13 (C) |
| Termination Method | PCB |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
