8D509K98PN

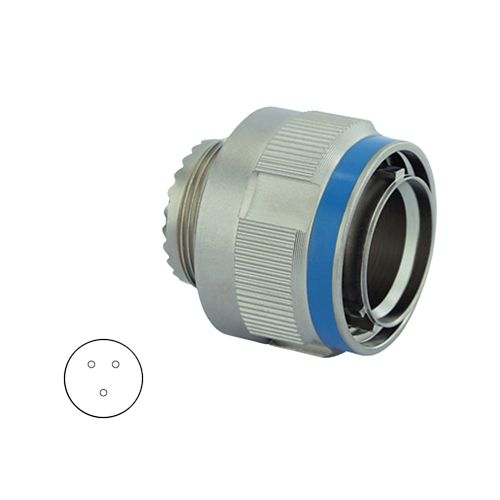

8D509K98PN, Plug with RFI Shielding, Shell Size 09 with Passivated Stainless Steel (K) Plating, 3#20 Pin Contacts, N Orientation.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 09-98 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Passivated (K) |
| Shell Size | 9 (A) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
