8D509W35BN

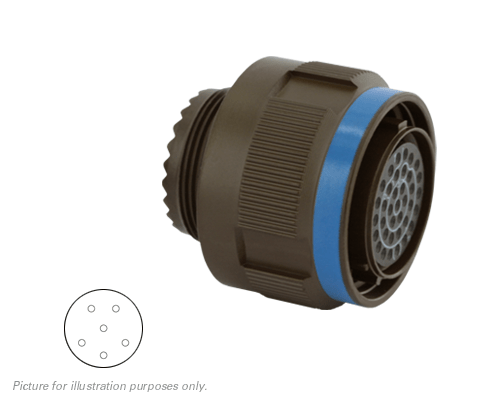

Eaton Souriau 8D509W35BN 8D Series III Plug with RFI Shielding, Shell Size 09 with Aluminium Alloy Olive Drab Cadmium Plating, 6#22D Less Sockets Contacts, N Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Socket – Female, Less Socket Contacts |
| Contact Size | 6#22D |
| Contacts Supplied | No |
| Insert Keyway | N, Normal |
| Insert Arrangement | 09 – 35, 09-35 |
| No of Contacts | 6 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Cadmium Olive Drab (W), Olive Drab Cadmium |
| Shell Size | 09, 9 (A) |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
