8D509ZC98PB

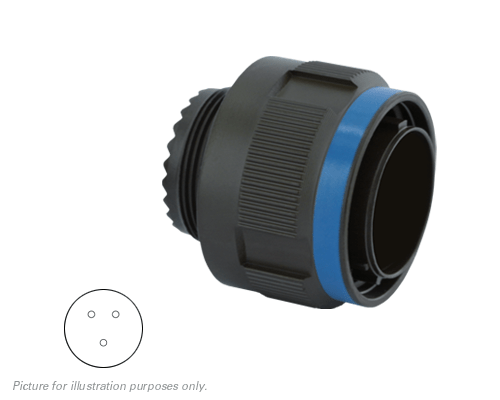

Eaton Souriau 8D509ZC98PB 8D Series III Plug with RFI Shielding, Shell Size 09 with Aluminium Alloy Green Zinc Cobalt Plating, 3#20 Male Pins Contacts, B Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Pin – Male |
| Contact Size | 3#20 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 09-98 |
| No of Contacts | 3 |
| Shell Material | Aluminium Alloy, Aluminium with Green Zinc Cobalt Plating |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 09 |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
