8D511K35PA

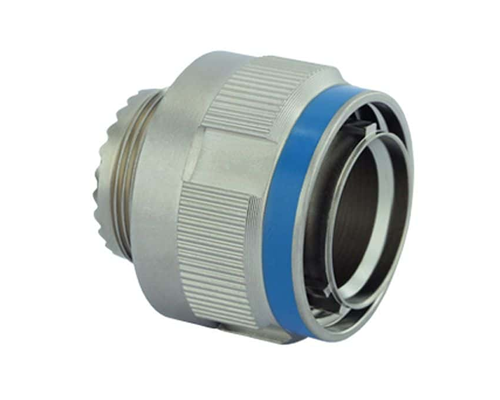

Eaton Souriau 8D511K35PA 8D Series III Plug with RFI Shielding, Shell Size 11 with Stainless Steel Passivated Plating, 13#22D Male Pins Contacts, A Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Pin – Male |
| Contact Size | 13#22D |
| Contacts Supplied | Yes |
| Insert Keyway | A |
| Insert Arrangement | 11-35 |
| No of Contacts | 13 |
| Shell Material | Passivated Stainless Steel, Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 11 |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
