8D513F08SN

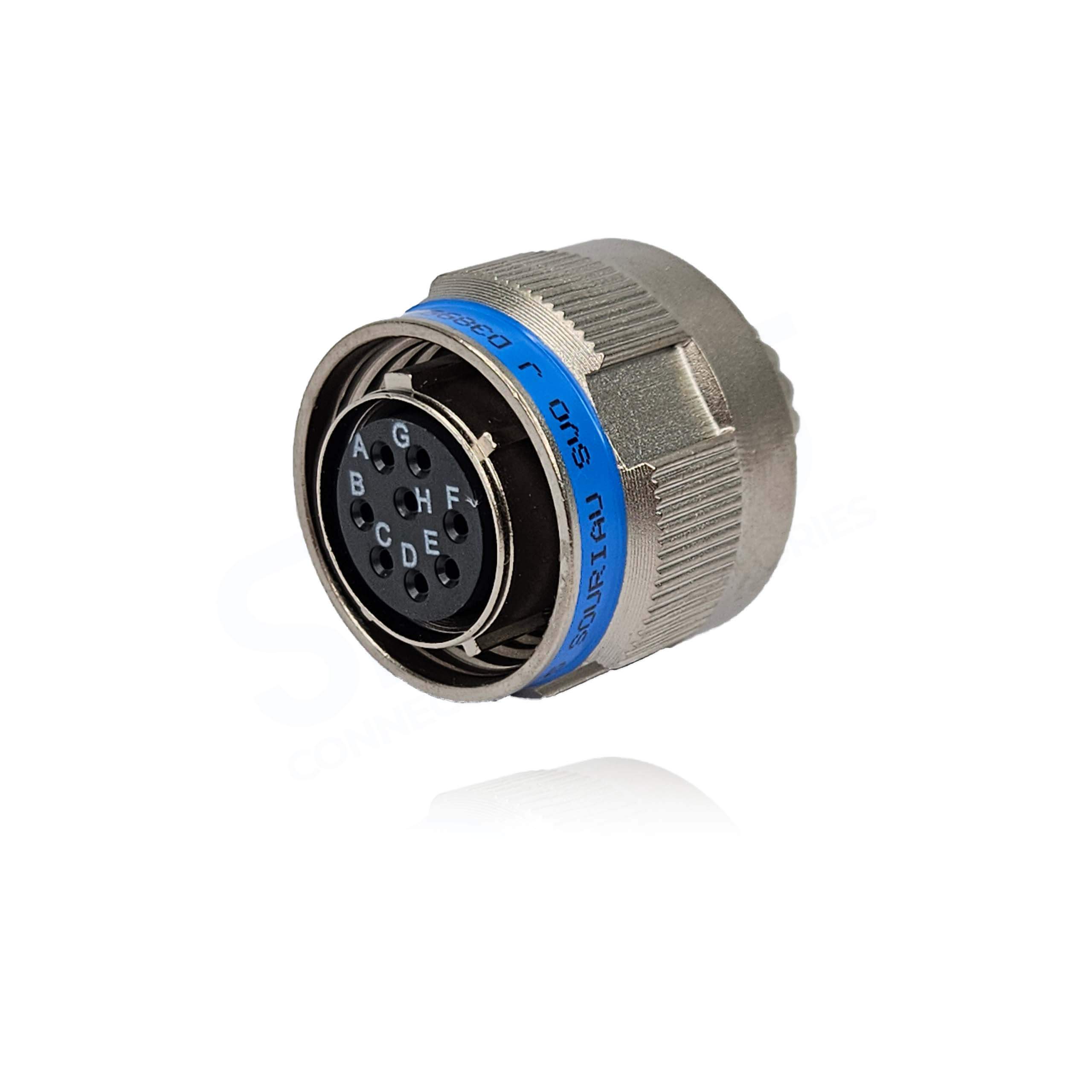

Eaton Souriau 8D513F08SN 8D Series III Plug with RFI Shielding, Shell Size 13 with Aluminium Alloy Nickel Plating, 8#20 Female Sockets Contacts, N Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Series | 8D Series III |
| Connector Style | Plug with RFI Shielding |
| Contacts Supplied | Yes |
| Contact Gender | Socket - Female |
| Contact Size | 8#20 |
| No of Contacts | 8 |
| Termination Method | Crimp |
| Insert Arrangement | 13-08 |
| Insert Keyway | N |
| Shell Size | 13 |
| Shell Material | Aluminium Alloy, Aluminium with Nickel Plating |
| Shell Plating | Nickel |
| Mating Cycles | 500 |
| Shell Continuity | 1 mΩ |
| Shielding | 65 db at 10 GHz |
Environmental Specifications
| Sealing | IP67 |
|---|---|
| Operating Temperature | -65°C to +200°C / -85°F to +392°F |
| Salt Spray | 48 Hours |
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes - Commercial Version |
|---|---|
| Specification | 8D Series |
| VAD | 48 Hours |
