Eaton Souriau

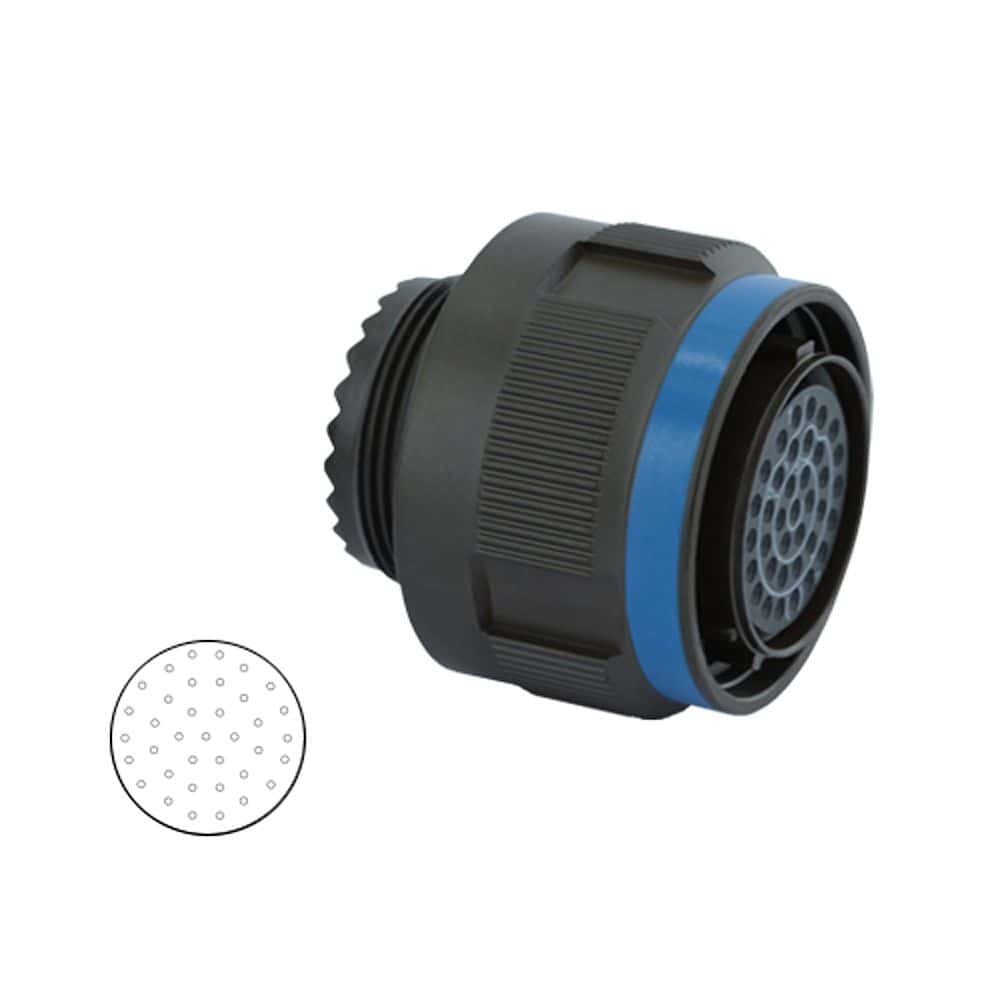

Eaton Souriau, 8D515Z35SN, Plug with RFI Shielding, Shell Size 15 with Black Zinc Nickel Plating, 37#22D Socket Contacts.

8D515Z35SE

8D515Z35SE, Plug with RFI Shielding, Shell Size 15 with Black Zinc Nickel Plating, 37#22D Socket Contacts, E Orientation.

RoHS Compliant: Yes

Ordering Information

Available to order

Estimated Factory Lead Time: Please contact the office for more information.

Require more? Enquire Here

Technical Specifications

ManufacturerEaton Souriau
Connector StylePlug with RFI Shielding
Contact GenderSocket – Female
Contact Size37#22D
Contacts SuppliedYes
Insert KeywayE
Insert Arrangement15-35
No of Contacts37
Shell MaterialAluminium with Black Zinc Nickel Plating
Shell PlatingBlack Zinc Nickel (Z)
Shell Size15 (D)
Termination MethodCrimp

Environmental Specifications

Operating Temperature-65°C +200°C – -85°F +392°F
RoHS CompliantYes

Quality & Compliance

QualifiedYes – Commercial Version
SpecificationMIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC
SeriesMIL-DTL-38999 Series III
