8D517F20SA

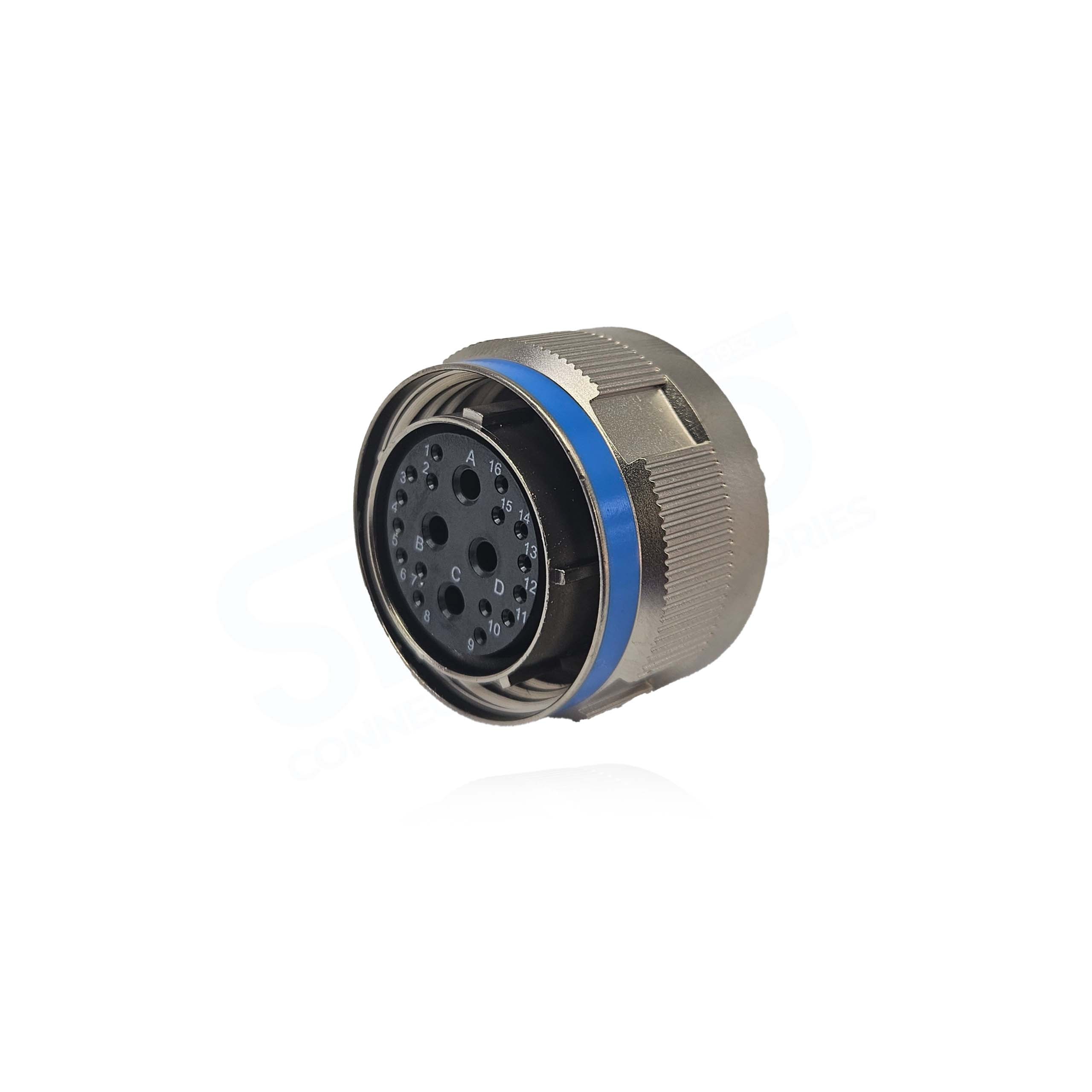

8D517F20SA, Plug with RFI Shielding, Shell Size 17 with Nickel Plating, 4#12, 16#22D Socket Contacts, A Orientation.
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Socket – Female |
| Contact Size | 16#22D, 4#12 |
| Contacts Supplied | Yes |
| Coupling Style | Bayonet |
| Insert Keyway | A |
| Insert Arrangement | 17-20 |
| No of Contacts | 20 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Nickel (F) |
| Shell Size | 11 (B) |
| Termination Method | Crimp |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
