8D517ZC99PB

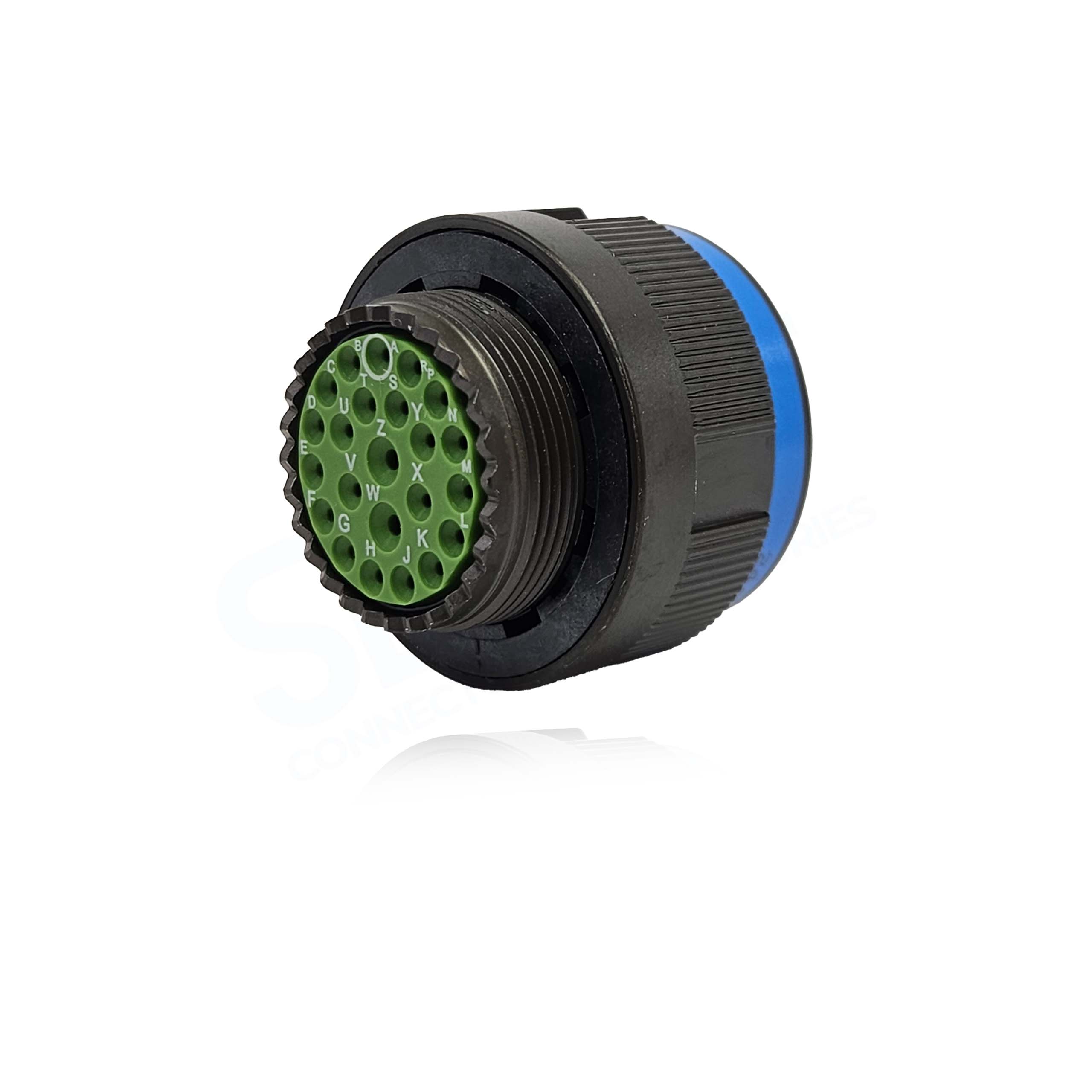

Eaton Souriau 8D517ZC99PB 8D Series III Plug with RFI Shielding, Shell Size 17 with Aluminium Alloy Green Zinc Cobalt Plating, 2#16,21#20 Male Pins Contacts, B Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Pin – Male |
| Contact Size | 2#16, 21#20 |
| Contacts Supplied | Yes |
| Insert Keyway | B |
| Insert Arrangement | 17-99 |
| No of Contacts | 23 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 17 |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Salt Spray | 250 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
