8D521W77SN

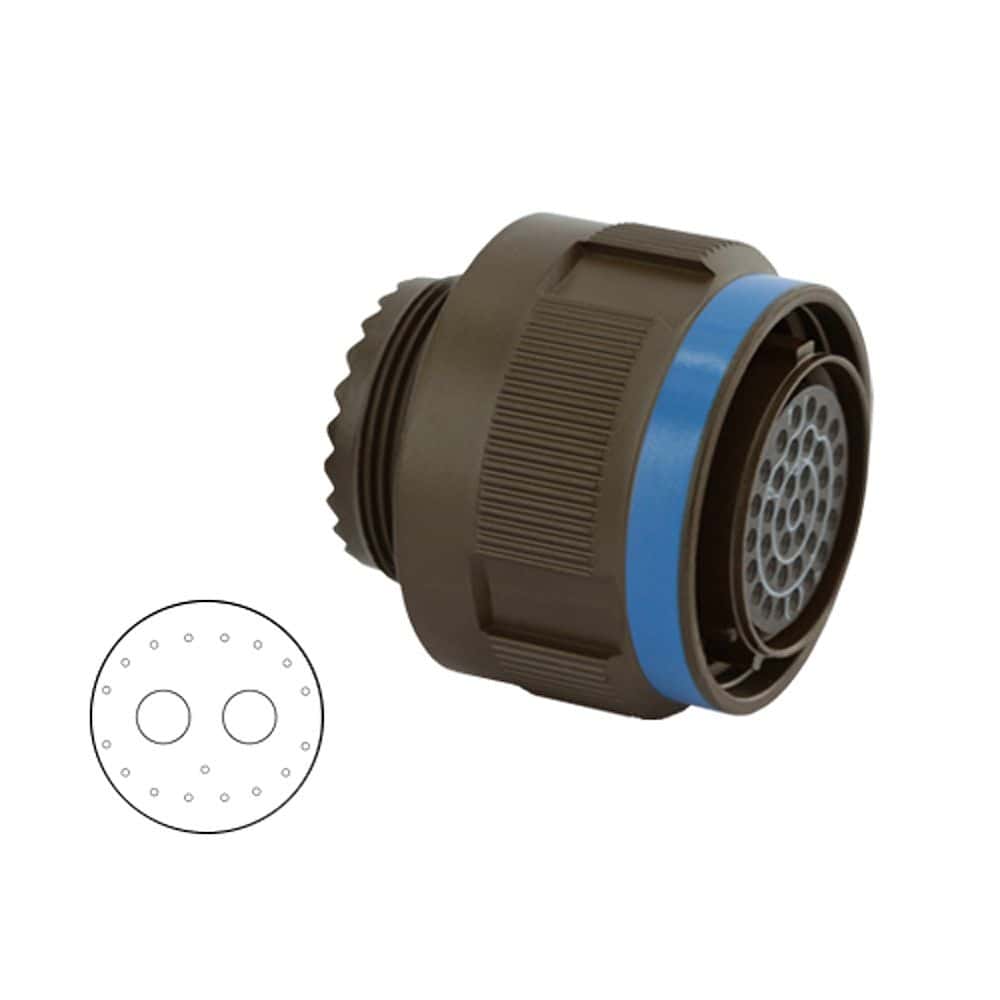

The Eaton Souriau 8D521W77SN is an 8D Series III commercial circular connector with RFI shielding. Featuring a Size 21 Aluminium Alloy shell with Olive Drab Cadmium plating, and 17#22D, 2#8 TRIAX Female Sockets in N orientation. Ideal for Aerospace, Military, Industrial, Energy, Maritime and Naval applications. This connector provides RFI-shielded power and signal contacts for high-reliability applications and is engineered for robust performance in industrial and commercial systems.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Socket – Female |
| Contact Size | 2#8 |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| No of Contacts | 19 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Olive Drab Cadmium |
| Shell Size | 21 |
| Termination Method | Triax |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
