8D521ZC48BA

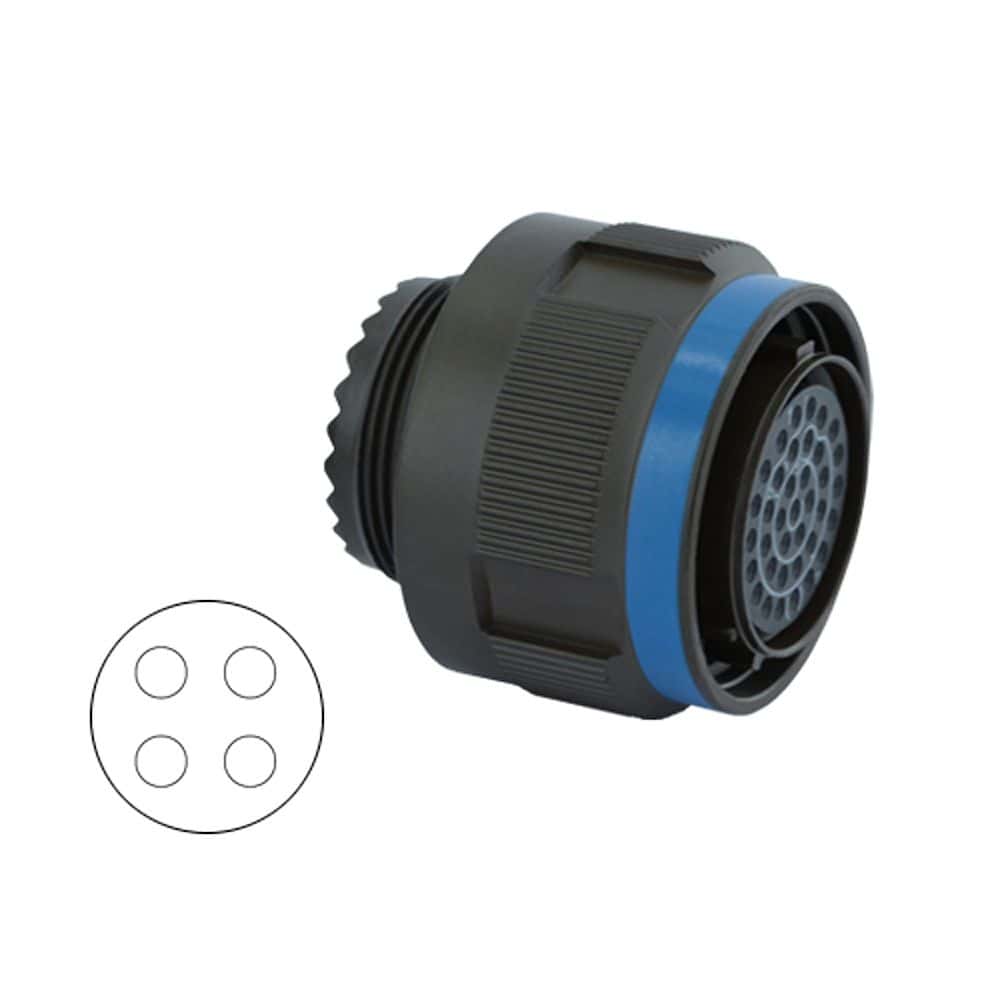

Eaton Souriau 8D521ZC48BA 8D Series III Plug with RFI Shielding, Shell Size 21 with Aluminium Alloy Green Zinc Cobalt Plating, 4#8 POWER Less Sockets Contacts, A Orientation. Ideal for Aerospace, Military, Industrial, Energy, Maritime, and Naval applications.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Less Socket Contacts |
| Contact Size | 4 |
| Contacts Supplied | No |
| Insert Keyway | A |
| Insert Arrangement | 21-48 |
| No of Contacts | 4 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Green Zinc Cobalt (ZC) |
| Shell Size | 21 |
| Termination Method | Power |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | Consult Manufacturer |
Environmental Specifications
| Operating Temperature | -65°C +175°C – -85°F +347°F |
|---|---|
| RoHS Compliant | No |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 48 Hours |
