8D523K53BN

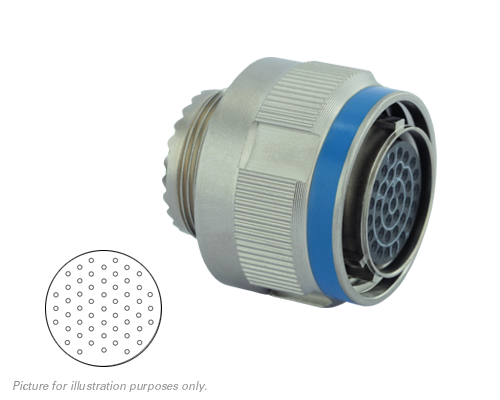

Eaton Souriau 8D523K53BN 8D Series III Plug with RFI Shielding, Shell Size 23 with Stainless Steel Passivated Plating, 53#20 Less Sockets Contacts, N Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Plug with RFI Shielding |
| Contact Gender | Less Socket Contacts |
| Contact Size | 53#20 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 23-53 |
| No of Contacts | 53 |
| Shell Material | Passivated Stainless Steel, Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 23 |
| Termination Method | Crimp |
| Mating Cycles | 500 |
| Shell Continuity | 10 mΩ |
| Shielding | 45 db at 10 GHz |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
| Salt Spray | 500 Hours |
| Sealing | IP67 |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | 8D Series |
| Series | 8D Series III |
| VAD | 72 Hours |
