8D709W35SA

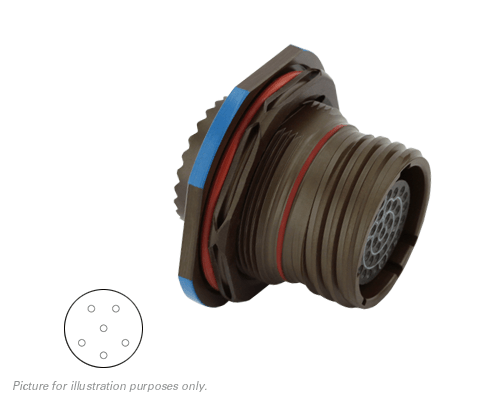

Eaton Souriau 8D709W35SA 8D Series III Jam Nut Receptacle, Shell Size 09 with Aluminium Alloy Olive Drab Cadmium Plating, 6#22D Female Sockets Contacts, A Orientation. Ideal for Aerospace, Industrial, Military.
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Series | 8D Series III |
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Socket - Female |
| Contact Size | 6#22D |
| No of Contacts | 6 |
| Termination Method | Crimp |
| Insert Arrangement | 09-35 |
| Insert Keyway | A |
| Shell Size | 09 |
| Shell Material | Aluminium Alloy, Aluminium with Olive Drab Cadmium Plating |
| Shell Plating | Olive Drab Cadmium |
| Mating Cycles | 500 |
| Shell Continuity | 2.5 mΩ |
| Shielding | 50 db at 10 GHz, 85 db at 1 GHz |
Environmental Specifications
| Sealing | IP67 |
|---|---|
| Operating Temperature | -65°C to +175°C / -85°F to +347°F |
| Salt Spray | 500 Hours |
| RoHS Compliant | No |
Quality & Compliance
| Qualified | Yes - Commercial Version |
|---|---|
| Specification | 8D Series |
| VAD | 48 Hours |
