8D711Z80AN

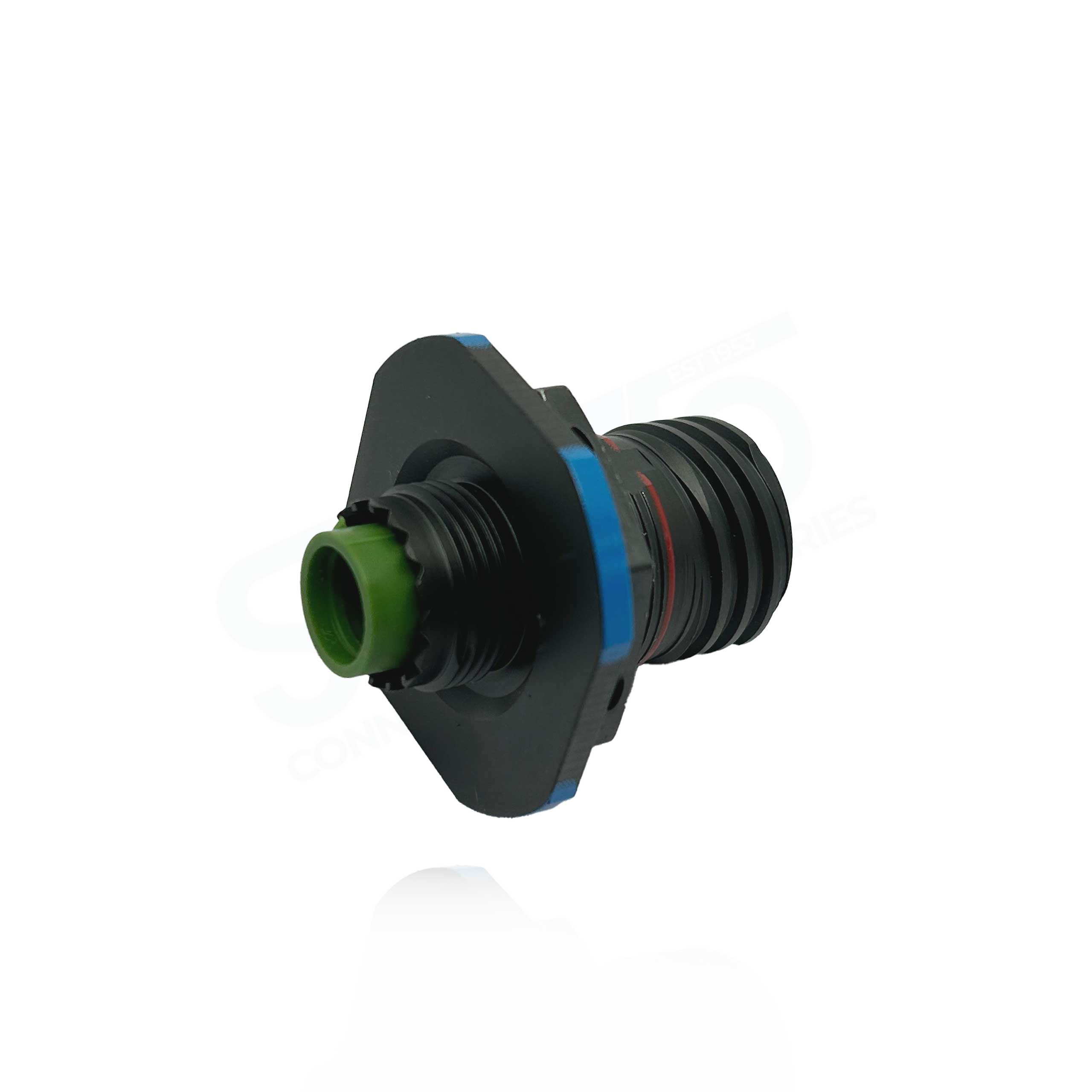

8D711Z80AN Jam Nut Receptacle, Shell Size 11 with Black Zinc Nickel Plating (Z), 1#8 Triax Less Pin Contacts
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 1#8 |
| Contacts Supplied | No |
| Insert Keyway | N |
| Insert Arrangement | 11-80 |
| No of Contacts | 1 |
| Shell Material | Aluminium Alloy |
| Shell Plating | Black Zinc Nickel (Z) |
| Shell Size | 11 (B) |
| Termination Method | Triax |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
