8D713K26PN

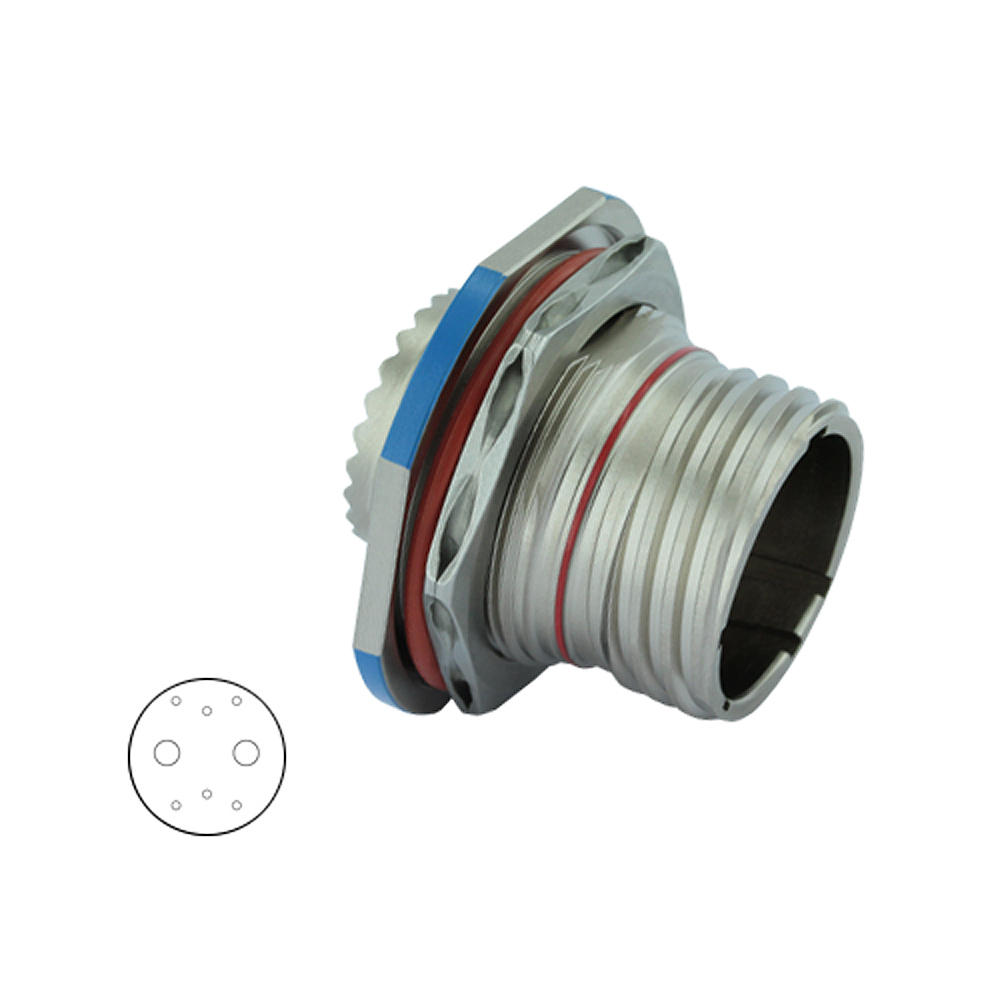

8D713K26PN Jam Nut Receptacle, Shell Size 13 with Passivated Stainless Steel Plating (K), 2#12 6#22D Pin Contacts
| RoHS: Yes Delivery: 48 Hour Build |
RoHS Compliant: Yes
Technical Specifications
| Manufacturer | Eaton Souriau |
|---|---|
| Connector Style | Jam Nut Receptacle |
| Contact Gender | Pin – Male |
| Contact Size | 2#12, 6#22D |
| Contacts Supplied | Yes |
| Insert Keyway | N |
| Insert Arrangement | 13-26 |
| No of Contacts | 8 |
| Shell Material | Stainless Steel |
| Shell Plating | Passivated (K) |
| Shell Size | 13 (C) |
| Termination Method | #N/A |
Environmental Specifications
| Operating Temperature | -65°C +200°C – -85°F +392°F |
|---|---|
| RoHS Compliant | Yes |
Quality & Compliance
| Qualified | Yes – Commercial Version |
|---|---|
| Specification | MIL-DTL-38999 Series III – EN3645 – BACC63CT/CU -BACC63DB/DC |
| Series | MIL-DTL-38999 Series III |
